D2410PG, Sensata / Crydom Series 1 Series Solid State Relay, 10 A Load, Panel Mount, 280 V rms Load, 32 V Control, Реле

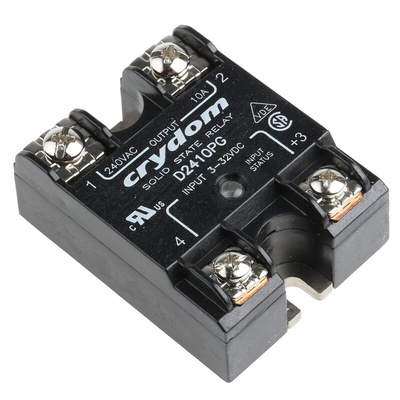

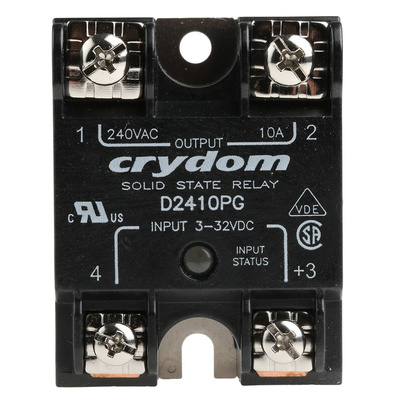

Sensata | Crydom Solid-State Relay, SCR Output, 3 to 32V DC Control Voltage Range - Series 1 - D2410PG

Make light work of switching heavy loads with this solid-state relay from Sensata | Crydom. Its wide control voltage range of 3 to 32V DC makes it a versatile choice for switching different circuits on and off. Screw terminals ensure secure wiring, while the anti-rotation barriers on the housing prevent the unit from coming loose when your equipment is on shaky ground. You'll commonly find an SSR like this one used for applications such as motor control, transformers and compressors.

Features & Benefits

• Works reliably in harsh industrial environments, thanks to a wide operating temperature range between -40°C and +80°C
• Mounting hole and slot make it a cinch to install on a panel
• LED indicator makes it a doddle to check the input status

How does an SSR differ from a mechanical relay?

SSRs like this one work switch without relying on moving parts, helping to minimise the risk of wear that comes with moving contacts. This helps to ensure a longer service life and reduced maintenance.

Approvals

UL Recognised; C-UL Recognised; VDE (Including Protection)

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

UL E116950

UL REC FOR CANADA E116950
