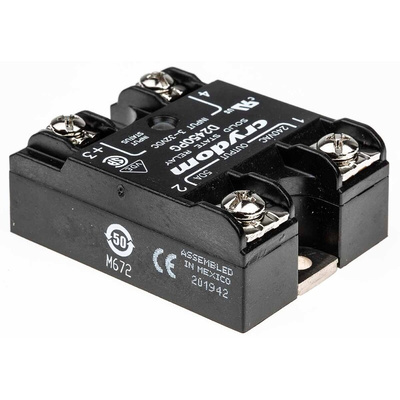

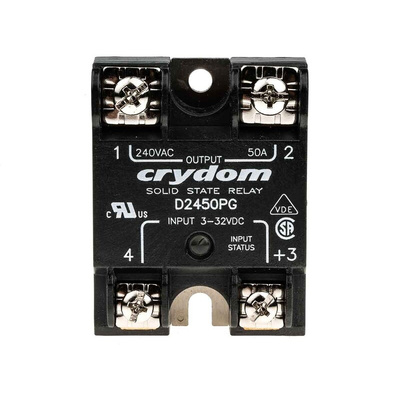

D2450PG, Sensata / Crydom 1 Series Solid State Relay, 50 A Load, Panel Mount, 280 V rms Load, 32 V Control, Реле

SSRs with Built In Overvoltage Protection AC Switching 10A to 125A

Overvoltage and transient protection
Zero Voltage Switching
Solid State reliability
Status indicating LED
Microprocessor compatible input
Terminal Type Screw; Saddle Clamp
Operating Temperature Range -40 to +80°C
Dimensions: H22.9 x W45.7 x D58.4
Input to output Capacitance: 8pF

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL Recognised; C-UL Recognised; VDE (including Protection)

Sensata | Crydom Solid-State Relay, 24 to 280V AC Operating Voltage Range, 50A Rated Load Current - D2450PG

Reliably control electricity in your PCB with this Sensata | Crydom solid-state relay. It handles high load currents of 50A for use in heavy-duty industrial applications. Thanks to the anti-rotation barriers on the housing, your SSR will remain securely attached to your PCB, even in the event of heavy vibrations. This unit features overvoltage protection to prevent damage to your equipment from voltage spikes. You'll find it used in lighting and heating applications.

Features & Benefits

• Screw terminals for quick fitting to a panel
• Wide operating temperature range between -40°C and +80°C for use in demanding environments
• Input-status LED indicator for ease of monitoring
• Short turn-on time of 10ms for precise control
• Wide operating voltage range of 24 to 280V AC for versatility

What does zero-cross switching mean?

Zero-cross switching means this device only turns on when the load voltage is zero to prevent currents from rising too quickly and creating electrical noise. As noise can interrupt digital signals, a zero-cross function improves the reliability of your circuit board.

Approvals

UL Recognised; C-UL Recognised; VDE (Including Protection)

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

UL E116950

UL REC FOR CANADA E116950
