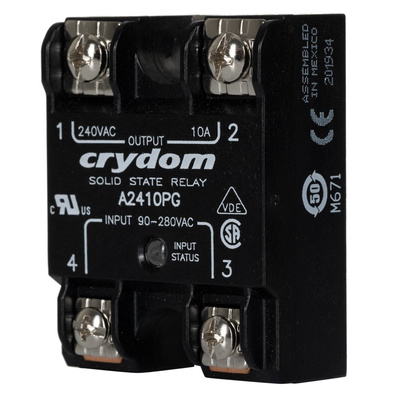

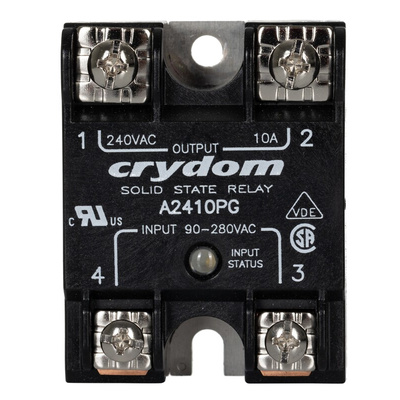

A2410PG, Sensata / Crydom 1 Series Solid State Relay, 10 A Load, Panel Mount, 280 V rms Load, 280 V Control, Реле

Sensata | Crydom Solid-State Relay, 10ms Turn-On Time, 86.5g Weight - Series 1 - A2410PG

Need a way to take charge of the electrical loads in your machinery? Look to this solid-state relay from Sensata | Crydom. It turns your equipment on and off without using any moving parts, so it resists wear for long-lasting use. The unit switches power to your circuit in a jiffy, thanks to its maximum turn-on time of 10ms and turn-off time of 40ms. As the thermally conductive epoxy encapsulation dissipates heat, the relay keeps its cool for optimal performance. You can use an SSR like this one in commercial food processing and textile equipment.

Features & Benefits

• Low leakage current of 10mA for energy efficiency
• Zero-cross switching means it turns on when the voltage is close to 0V to generate minimal noise
• Light weight of 86.5g to place minimal strain on your equipment
• Screw terminals mean you can wire it using just a screwdriver

How do I monitor the status of this device?

This device has a green LED indicator, so you can determine its status at a glance.

Approvals

UL Recognised; C-UL Recognised; VDE (Including Protection)

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

UL E116950

UL REC FOR CANADA E116950

Solid State Relays Series S1.10-125A Data Sheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
