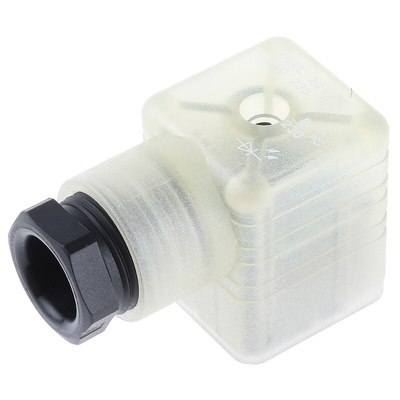

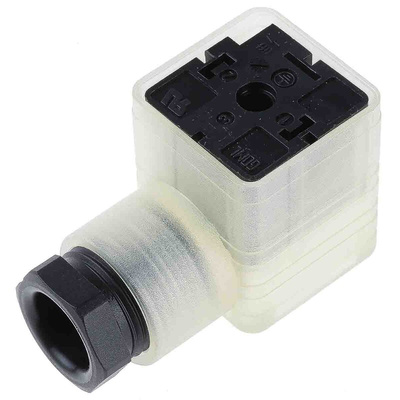

935980244 RS GDML 3011 LED 230 RG schwarz, Hirschmann GDML 3P+E DIN 43650 A, Female Solenoid Valve Connector, with Indicator Light, 250 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, IP65 Rating, Central-Nut Mounting Type - GDML Series - 935980244 RS GDML 3011 LED 230 RG schwarz

This DIN-type solenoid valve socket from Belden's Hirschmann range enables you to create a reliable connection to valves and sensors. An IP65 rating means that after installation it's dust-tight and resistant to jets of water from any direction. Its angled head reduces cable strain, while the PA housing provides resistance to chemicals and oils. This makes the connector useful for solenoid valves in hydraulic and pneumatic systems. As it has built-in red and green indicator LEDs, it's well-suited to pressure switch applications.

Features & Benefits

• Wide operating temperature range between -40ºC and +90ºC, for use in harsh conditions
• Central nut for vibration-resistant mounting

Applications

• Process control
• Conveyors
• Construction machinery
• HVAC controls

What cable size is needed to wire this solenoid valve connector?

To wire this solenoid valve connector, you'll need a cable with a diameter between 4.5 and 11mm.

Standards

DIN 43650-A

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

GDM Series - Cable Sockets, Inserts & Accessories

UL E95522
