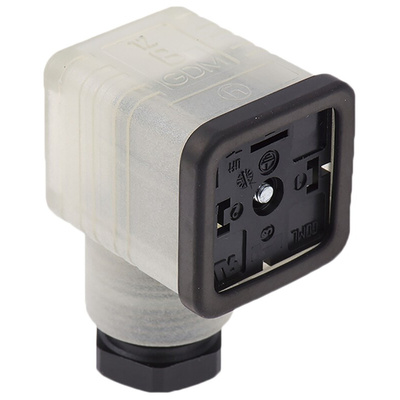

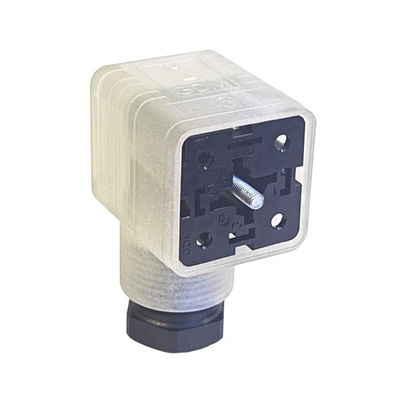

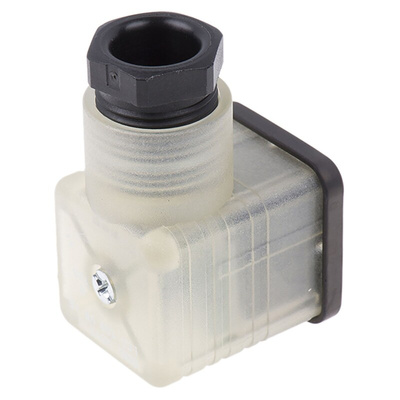

933927212 GDML 2011 LED 120 VR YE black, Hirschmann GDML 2P+E DIN 43650 A, Female Solenoid Valve Connector, with Indicator Light, 120 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, PG11 Cable Gland Size, 8A Current Rating - GDML Series - 933927212 GDML 2011 LED 120 VR YE black

Safely power up your solenoid with this waterproof connector from Belden Hirschmann. It's rated IP65 and handles low-pressure jets from all directions, so you rely on it in washdown conditions. As the sturdy glass-filled nylon housing is resistant to impact, it brushes off knocks in heavy industrial settings. This hardy connector withstands voltage surges and EMI, so you can depend on it for a long-lasting, reliable connection.

Features & Benefits

• Screw-down termination method is quick, easy and secure
• Inner connector rotates through 90° increments to suit your system's architecture

Applications

• Machine building
• Temperature sensors
• Pressure transducers

How can I tell if this connector is working properly?

The bright yellow LED indicator light lets you know that everything's fully operational, for hassle-free troubleshooting.

Standards

DIN 43650-A

Type A DIN 43650 Hirschmann

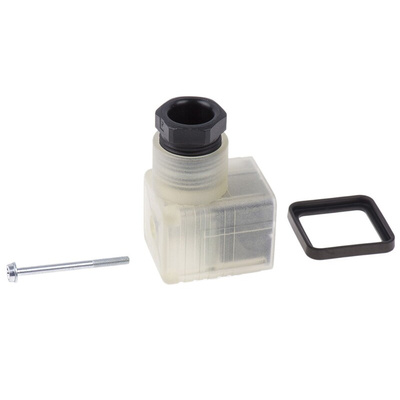

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

GDM Series - Cable Sockets, Inserts & Accessories

GDM Series Cable Sockets with Insert

UL E95522

GDML Series Connectors Catalogue Extract
