933572100 GMNL 209 NJ LED 24 YE black, Hirschmann GMNL 2P+E DIN 43650 B, Female Solenoid Valve Connector, with Indicator Light, 24 V ac/dc Voltage, Разъем

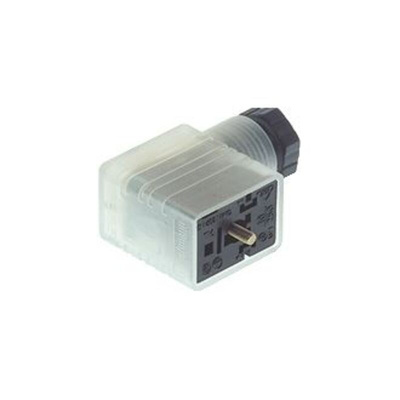

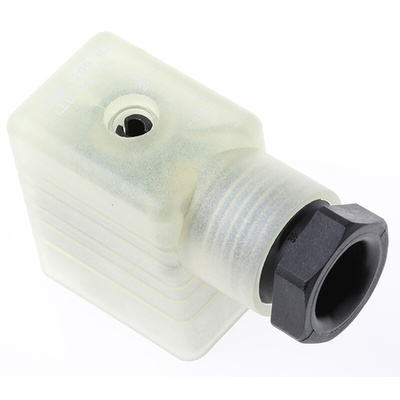

Belden Hirschmann Female Solenoid Valve Connector, 8A Current Rating - GMNL Series - 933572100 GMNL 209 NJ LED 24 YE black

Use this robust connector from Belden to link solenoid valves to your pneumatic and hydraulic systems. Its PA housing material provides impact resistance, making it suitable for use in harsh environments. A standard PG9 cable gland is included to protect the connection cable from damage. The unit can accommodate cables with diameters from 4.5 to 7mm, which increases its versatility. There's also a yellow LED indicator that makes it easy to identify at a glance when the connector operating.

Features & Benefits

• Wide operating temperature range of -40ºC to +90ºC for use in demanding environments
• Screw-down termination method is quick and easy
• IP65 (ingress protection) rating indicates the connector withstands dust and low-pressure water jets
• Will burn for no more than 30 seconds in the event of a fire, for improved workplace safety

Applications

• Process and packaging equipment
• Pharmaceutical production plants
• Medical equipment

What protective features does this connector have?

This connector has an integrated rectifier to convert high AC voltage to low DC voltage. A connected solenoid valve can then utilise this safely.

GM_GMN-SERIES - Data sheet

GMN Series Cable Sockets with Insert Data Sheet

Valve Connector GMNL 209 Data Sheet

Catalogue - Valve Connectors
