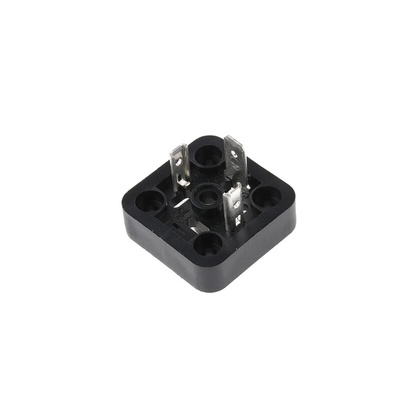

932429100 GSAZ 200, Hirschmann GSAZ 2P+E DIN 43650 A, Male Solenoid Valve Connector, No, 400 V ac/dc Voltage, Разъем

Belden Hirschmann Solenoid Valve Connector, IP65 Rating, Wall Mounting Type - GSAZ Series - 932429100 GSAZ 200

Provide signal and power to valves and sensors with this solenoid valve connector from Belden's Hirschmann range. It has a standard type-A construction with three pins, for easy compatibility with automation networks. There are two poles plus an earth connection, which grounds your equipment and promotes safety. A wide operating temperature range between -40ºC and +125ºC makes this a suitable option for use in demanding environments.

Features & Benefits

• Screw-down installation for strong and secure mounting
• Polyamide housing is thermally stable and resistant to wear

Applications

• Automotive industry
• Chemical plants
• Food and beverage
• Waste and water processing

Does this valve connector have an IP rating?

This valve connector has an IP65 rating when installed with a gasket fitting to seal it. This makes it dust-tight and resistant to jets of water from any direction.

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10

Appliance Connector GSAZ 200 Black Data Sheet

Catalogue - Valve Connectors Industrial Connectivity Solutions
