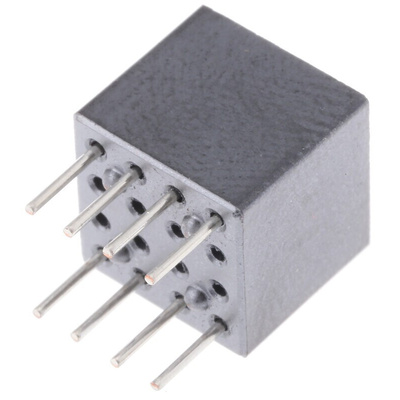

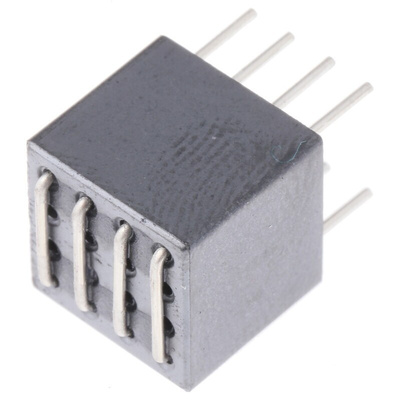

742730023, Wurth Elektronik Ferrite Bead (Multi Line), 11 x 11.2 x 11.2mm (Radial), 292Ω impedance at 25 MHz, 334Ω impedance at, Ферритовая шайба

Triple/Quadruple EMC Interference Suppression Chokes, Ferrite Bridges

Interference suppression chokes with NiZn ferrite interference suppression core
Ideal for absorption of common-mode and series-mode interference in the EMC range
The impedance (e.g. 4 windings) or current (parallel connection) can be increased depending on the layout
Single use applies a power-compensated triple or quadruple choke to the signal
A double power-compensated choke can be achieved by wiring with 2x2 windings
High current carrying capacity of typically 4A
Wideband filter effect due to NiZn absorber ferrite core
HF common-mode choke for 2, 3 or 4 wires in one component
Compact design

Applications:
EMC filter in the range of common-mode and series-mode interference, wideband power supply filter. Data or measuring signal filter for RS-232, sensor inputs etc.

Multiline Ferrite Suppressor - Data Sheet
