A 6.2 mm PLC interface relay module designed to be mountable on DIN rail NS 35/7.5. Featuring a basic terminal block with screw connection and a plug-in miniature power relay.
Phoenix Contact PLC-RCS Relays Series
This range of compact PLC relays from Phoenix Contact gives you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.
Features and Benefits:
• Saves space on the DIN rail
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm
Typical Applications:
The PLC relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

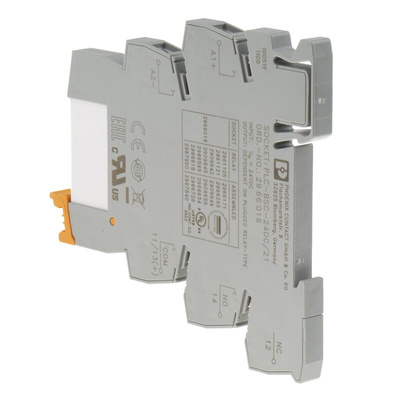

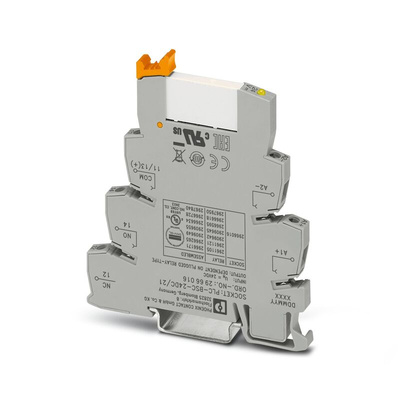

Phoenix Contact Relay Module, SPDT - PLC-RSC-24DC/21 - 2966171
Need a compact PLC (programmable logic controller) relay that will save you space on a DIN rail? This interface relay module from Phoenix Contact features a basic terminal block with a screw connection and a miniature power relay.

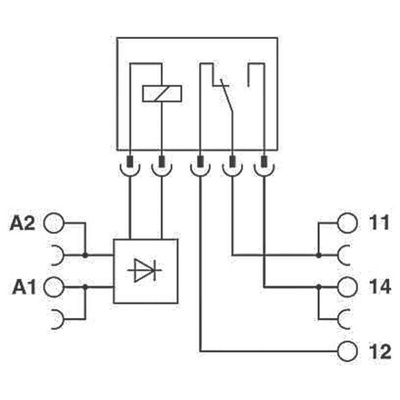

The device uses the same electromechanical relay module for switching both AC and DC voltage – an efficient way to save space. The SPDT (single pole, double throw) configuration means it can serve as an on-off switch or be used to switch between two circuits. A yellow LED (light-emitting diode) operating voltage display makes it easy to monitor performance.
The interface relay module is DIN-rail mounting, so it's easy to install and compatible with a wide range of components. PLC relays such as this are often found controlling automated processes in factory assembly lines and lighting fixtures.
Features and Benefits
• Coil voltage of 24 V DC
• Silver alloy contact material
• Maximum input voltage of 24 V DC
• Dimensions of 80 (length) x 94 (width) x 6.2 mm (depth)
• Input current of 9 mA
• Input resistance of 2.66 kΩ
• Operating temperature range of -40°C to +60°C
• Switching current of 6 A
