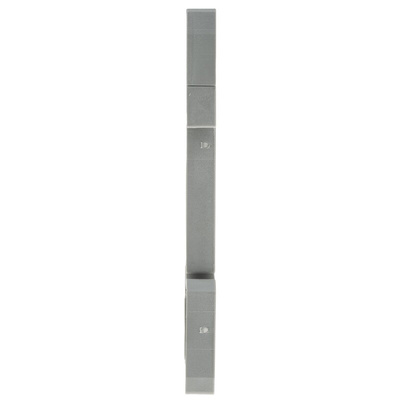

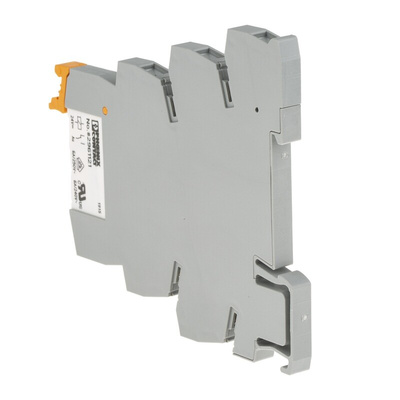

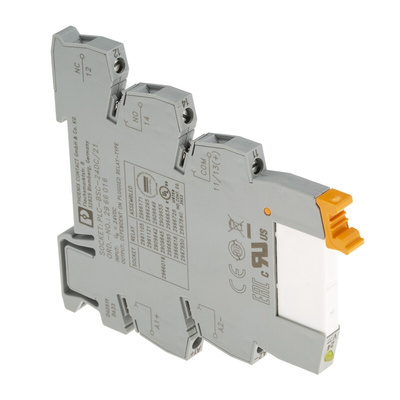

2966265, Phoenix Contact PLC-RSC- 24DC/21AU Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole

A 6.2 mm PLC interface relay module designed to be mountable on DIN rail NS 35/7.5. Featuring a basic terminal block with screw connection and a plug-in miniature power relay.

Phoenix Contact PLC-RCS Relays Series

This range of compact PLC relays from Phoenix Contact gives you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.

Features and Benefits:

• Saves space on the DIN rail
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm

Typical Applications:

The PLC relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

Phoenix Contact Interface Relay Module, Screw Terminal, 24 V DC - PLC-RSC- 24DC/21AU - 2966265

This relay from Phoenix Contact provides a user-friendly connection between automation equipment and system peripherals. You can use it to amplify power or isolate electrical current in industrial programmable logic controllers (PLCs).
The miniature interface is compatible with both AC and DC switching voltages and features a slimline design that takes up minimal space on your circuit board. Its flexible plug-in system makes bridging between non-adjacent terminal blocks possible. Screw connectors offer easy and maintenance-free wiring with high contact force and a large contact surface. They firmly hold conductors in place without you having to retighten screws.
As the relay's plug-in technology is resistant to shock and vibration, this product is suitable for use with industrial computers, such as those found in the automotive industry. It has an Underwriters Laboratory UL 94-V0 rating, so it's flame-retardant and won't ignite.

• Coil voltage of 24 V DC
• Single Pole Double Throw (SPDT) contact configuration
• Gold-plated contact material
• Dimensions of 80 (L) x 94 (W) x 6.2 mm (D)
• Input current of 9 mA
• Input resistance of 2.66 kΩ
• Maximum input voltage of 24 V DC
• Operating temperature range of -25°C to +60°C
• Switching current of 6 A
• DIN rail mount type
• Switching current of 6 A
