A 6.2 mm PLC interface relay module designed to be mountable on DIN rail NS 35/7.5. Featuring a basic terminal block with screw connection and a plug-in miniature power relay.
Phoenix Contact PLC-RCS Relays Series
This range of compact PLC relays from Phoenix Contact gives you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.
Features and Benefits:
• Saves space on the DIN rail
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm
Typical Applications:
The PLC relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

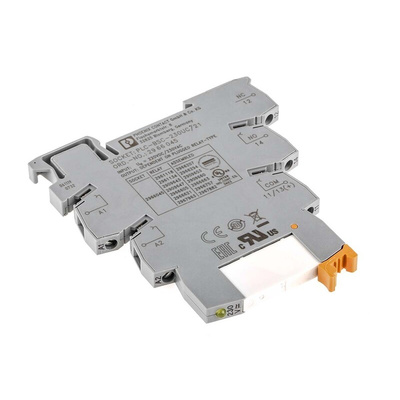

Phoenix Contact Interface Relay Module, Screw Terminal, SPDT - PLC-RSC-230UC/21 - 2966207
This compact PLC (programmable logic controller) relay from Phoenix Contact will save space on your DIN rail. It features a basic terminal block with a screw connection and a miniature power relay.
The space-saving design uses the same electromechanical relay module for switching both AC and DC voltage. The SPDT (single pole, double throw) configuration means it can be used both as an on-off switch and to transfer between two circuits. Screw terminals make for quick and secure connections. A yellow LED (light-emitting diode) operating voltage display makes it easy to monitor performance, while a freewheeling damping diode protects the circuit against damage from sudden current loss.
The interface relay module's IP20 (ingress protection) rating means it's protected from dust and finger-sized objects. DIN-rail mounting ensures it's easy to install and compatible with a wide range of components.
• Coil voltage of 230 V AC/DC
• Silver alloy contact material
• Dimensions of 80 (length) x 94 (height) x 6.2 mm (depth)
• Input current of 3 (DC) mA, 3.2 (AC) mA
• Maximum input voltage of 230 V AC
• Operating temperature range of -25°C to +55°C
• Switching current of 6 A
