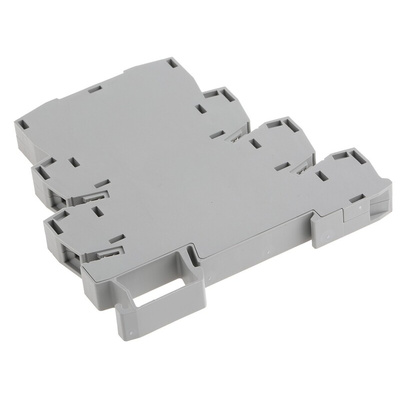

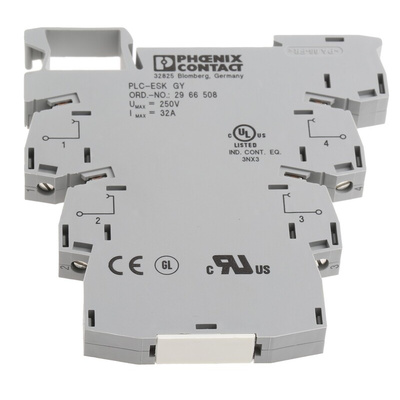

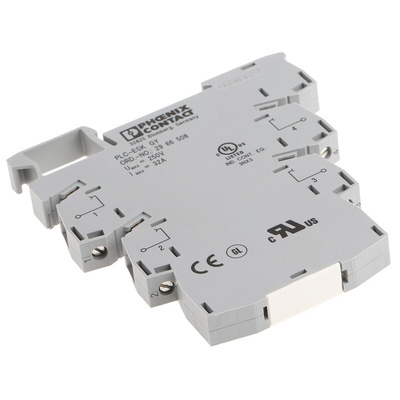

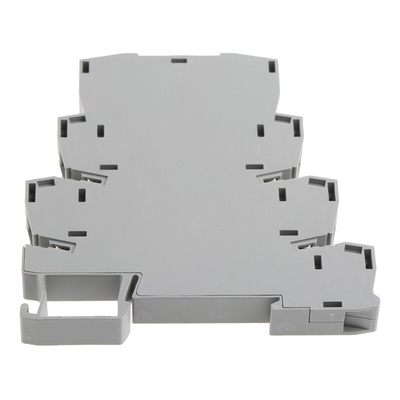

2966508, Phoenix Contact Din Rail Terminal

Phoenix Contact PLC-ESK Interface Relay Modules Series

PLC-ESK power terminal block units for mounting on DIN rail NS 35/7,5, single- and double-pole relays, and optocouplers, having the same profile. This allows the modules to be installed in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or optocouplers to a 15-way D-SUB cable.

This range of terminal blocks gives you a great choice of easy connection technology.

Features and Benefits:

• Relays and optocouplers for inputs and outputs with "pluggable" switching devices
• Four bridging slots to reduce wiring; bridging of up to 80 modules is possible
• Screw terminal connections
• LED indicators and diodes for coil suppression
• 250V versions have a switched power rating of 1500VA
• Mechanical life (relays) 1 x 107 operations
• Wide range of accessories also available

Applications:

PLC-ESK interface relay power terminals are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

PLC-ESK GY\t2966508

Datasheet
