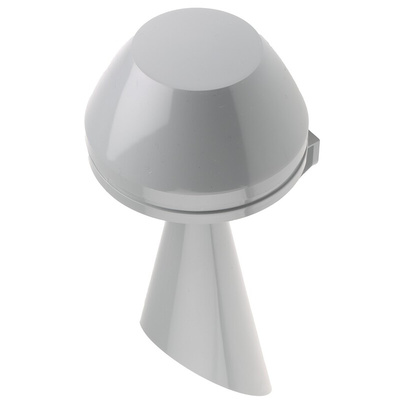

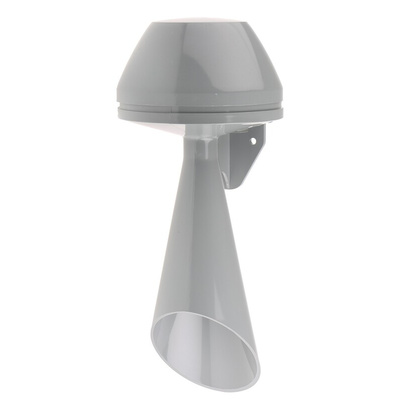

570.052.55, Werma Wall Mount Horn, 24 V dc, 108dB at 1 m, IP55, DC, Single-Tone

Trumpet Horn 570

Medium size trumpet horn for internal or external use
Very loud, 108 dB
Continuous tone 100Hz (ac) 150Hz (dc) version

Note

Sound outlet must face downwards.

WERMA Grey Trumpet Horn, 108dB, 24V DC - 570 Series - 570.052.55

Use this horn from WERMA to deliver loud audio warnings about changes in the status quo or approaching dangers. Siren alerts are universally understood and will grab the immediate attention of people in situations where caution and sound judgement are needed. The unit emits a continuous tone up to 108dB, so it can be heard clearly above factory background noise, which usually reaches around 85dB. You can use this durable horn in both indoor and outdoor settings as it withstands temperatures ranging between -20°C and +60°C.

Features & Benefits

• ABS (acrylonitrile butadiene styrene) housing makes the horn robust and resistant to impacts, chemicals and abrasions
• Wall-mounting bracket allows for quick and easy installation
• Rubber squeeze grommet is weather resistant

Applications

• Industrial environments
• Heavy vehicles like abnormal-load trucks
• Boatyards and docks

Can I attach this horn on my outside walls?

Yes, it's made from highly durable plastic that'll withstand damage caused by environmental factors.

Is a horn more effective than a light beacon?

Whether you use a horn or a beacon, or a combination of the two, depends on the visibility and noise levels in your setting.

Horn

570 Series Signal Horn Technical Specification

Operating Instructions (multi)

Datasheet

Machine Guarding and Safety Range Overview
