Power Contacts
From TE Connectivity this contact is for use with AMP Circular Plastic Connectors (CPC) Series 5 & 6.
Note
The correct assembly procedures must be followed to ensure a full IP65 rating.

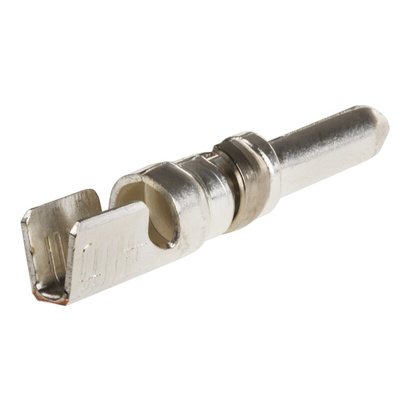

TE Connectivity Pin Contact
The TE Connectivity POWERBAND series male circular connector has a wire size of 14AWG to 12AWG. The pin contact is made of brass and has silver over nickel contact plating. It can be used with CPC connectors.
Features and Benefits
Crimp termination
Operating temperature is between -55°Cto 105°C
Straight mount
Series 5 power connectors have 3 pole Powerband contacts
Series 6 power connectors have 8 signal and 2 Powerband contacts
A wire entry seal is required in conjunction with the backshell
Include the flange seal with the panel socket for full sealing capabilities
Plugs, Sockets & Seals
Based on the successful and popular standard CPC series, these fully sealed IP65 power connectors utilise precision-formed Powerband contacts that offer a rating of up to 45A for single contacts, in isolation. Manufactured from high strength, impact resistant thermoplastic, rated UL94V-0, these connectors offer an economical, environmentally sealed solution.
Техническая спецификация
