Accessories
Replacement coupling rings
Heat shrink cable entry seals fit directly onto the receptacles
Jacketed cable seal kits include a rubber seal, collar, backshell extender and a special cable clamp cradle (to be used in conjunction with cable clamp size 2)

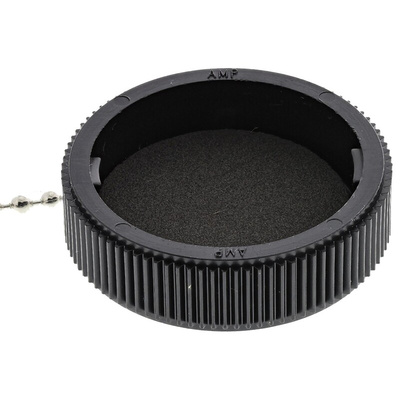

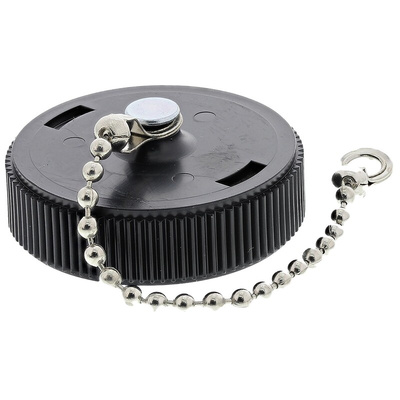

Dust caps with either plastic strap or metal chain for use with chassis sockets and cable coupler sockets
Note
The correct assembly procedures must be followed to ensure a full IP65 rating.
Series 5 power connectors have 3 pole Powerband contacts
Series 6 power connectors have 8 signal and 2 Powerband contacts
A wire entry seal is required in conjunction with the backshell
Include the flange seal with the panel socket for full sealing capabilities
Plugs, Sockets & Seals
Based on the successful and popular standard CPC series, these fully sealed IP65 power connectors utilise precision-formed Powerband contacts that offer a rating of up to 45A for single contacts, in isolation. Manufactured from high strength, impact resistant thermoplastic, rated UL94V-0, these connectors offer an economical, environmentally sealed solution.
Техническая спецификация
408-7582 Accesories for CPC Instruction SheetDatasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
