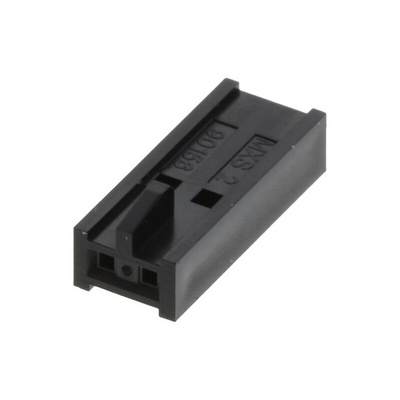

90156-0142, Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 2 Way, 1 Row, Корпус разъема

Molex C-Grid III Interconnection System Connector Housings

This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.

Features and Benefits

• 2.54 mm pitch
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles

Molex Connector Housing, 3A Maximum Current Per Contact, 2 Ways - C-Grid III Series - 90156-0142

Want customised wire-to-board connections? Start your made-to-measure system with this connector housing from Molex. The female casing's modular design lets you easily expand and tailor PCB circuit assemblies. As it's made from rugged PPO, it shrugs off chemical damage so you can count on it in heavy-duty environments. The unit operates reliably in temperatures between -55°C and +105°C, meaning you can trust it to get on with the job in challenging settings.

Features & Benefits

• Uniform locking system for wide compatibility with standard conductors
• Compact unit of 6.14 (L) x 5.35 (W) x 15.24mm (D) for space-saving installation
• Light weight of 0.28g puts minimal strain on your assembly

Applications

• Consumer electronics
• Medical devices
• Testing and measuring equipment
• Industrial control instruments

How many circuits can I run through this connector housing?

This unit accommodates up to two conductors to simplify your PCB setup.

Standards

DIN 41651; HE13/14

2.54mm Molex C-Grid III Range

Datasheet

Line Drawing
