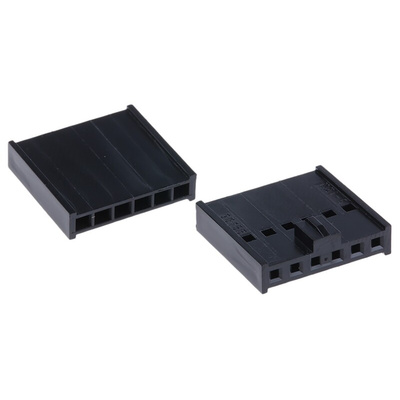

90156-0146, Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 6 Way, 1 Row, Корпус разъема

Molex C-Grid III Interconnection System Connector Housings

This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.

Features and Benefits

• 2.54 mm pitch
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles

Molex Connector Housing, Straight Body, 3A Maximum Current Per Contact - 90156 Series - 90156-0146

Keep wire-to-board connections running smoothly with this sturdy connector housing from Molex. As it's made from a polyphenylene oxide material, it's insulated and heat-resistant, so suitable for use with demanding electrical applications. The unit has six contacts arranged in a single row to save space on your PCB. A 2.54mm pitch keeps a safe distance between each circuit, so you won't get your wires crossed. It's easy to insert wires and be sure of error-free installation, thanks to the housing's reliable locking system.

Features & Benefits

• Suitable for use in harsh conditions with wide operating temperature range between -55°C and +105°C
• Easy to install using a simple crimping tool for time-saving connections

Applications

• IT security systems
• Consumer electronics
• Data processing and logistics

How much does this connector housing weigh?

With a light weight of just 0.512g, this unit won't put any strain on your circuitry.

Standards

DIN 41651; HE13/14

2.54mm Molex C-Grid III Range

Datasheet

Line Drawing

Application Specification - C-Grid III Interconnects
