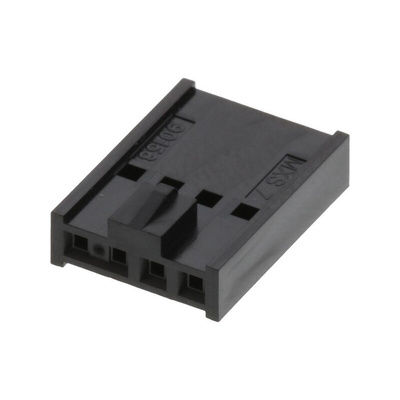

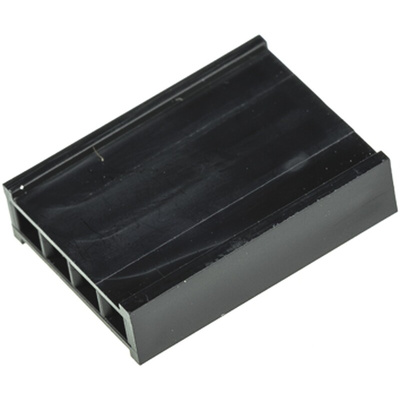

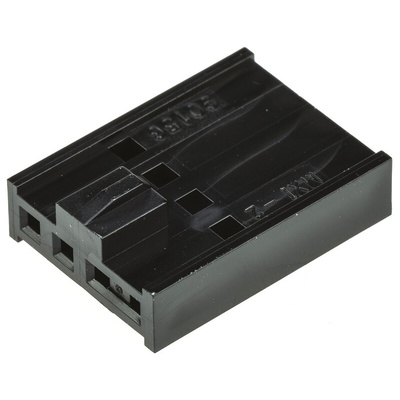

90156-0144, Molex, 90156 Female Connector Housing, 2.54mm Pitch, 4 Way, 1 Row, Корпус разъема

Molex C-Grid III Interconnection System Connector Housings

This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.

Features and Benefits

• 2.54 mm pitch
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles

Molex Connector Housing, 3A Maximum Current Per Contact, PPO Material - C-Grid III Series - 90156-0144

For tailored PCB connections, pick this connector housing from Molex. The female receptacle's modular design makes the expansion and customisation of wire-to-board circuit assemblies a breeze. As it's made of robust PPO, the unit resists heat distortion, so you can confidently use it in heavy-duty applications. It also has the muscle to handle tough conditions, as it operates in temperatures between -55°C and +105°C.

Features & Benefits

• Uniform locking system is compatible with standard conductors
• Small dimensions of 11.22 (L) x 5.35 (W) x 15.24mm (D) save space on your PCB
• Light weight of 0.366g puts minimal strain on your assembly

Applications

• Consumer electronics
• Industrial control panels
• Medical imaging equipment
• Aerospace applications
• Telecommunications systems

How many connections does this connector housing support?

It handles up to four circuits, so it helps simplify your setup.

Standards

DIN 41651; HE13/14

2.54mm Molex C-Grid III Range

Datasheet

Line Drawing

Application Specification -
