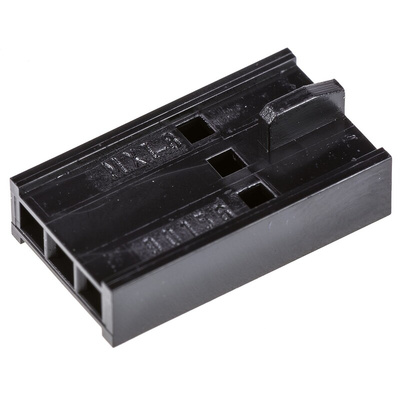

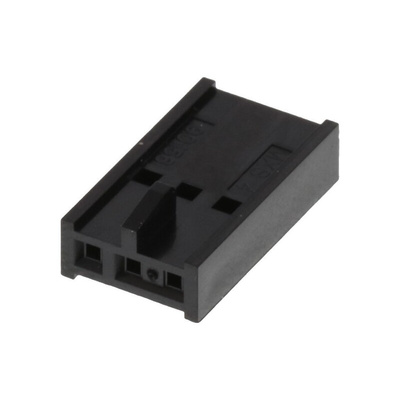

90156-0143, Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 3 Way, 1 Row, Корпус разъема

Molex C-Grid III Interconnection System Connector Housings

This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.

Features and Benefits

• 2.54 mm pitch
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles

Molex Connector Housing, 3A Maximum Current Per Contact, 2.54mm Pitch - C-Grid III Series - 90156-0143

For customised PCB connections, grab this female connector housing from Molex. It's a modular component that lets you tailor and expand wire-to-board circuit setups in a jiffy. To simplify your layout, you can run up to three links through this unit. It also makes the most of limited space, thanks to a compact design of 8.68 (L) x 5.35 (W) x 15.24mm (D) and a 2.54mm pitch. A broad operating temperature range of -55°C and +105°C means this connector shrugs off the demands of tough conditions.

Features & Benefits

• Light weight of 0.3g puts minimal strain on your assembly
• Uniform locking mechanism for broad compatibility with standard wires
• Straight orientation for fuss-free connection

Applications

• Medical equipment
• Consumer electronics
• Automated factory panels

What's the connector made from?

It's a sturdy option made from PPO, so resists heat distortion when used in heavy-duty applications and tolerates temperatures from -55°C to +105°C.

Standards

DIN 41651; HE13/14

2.54mm Molex C-Grid III Range
