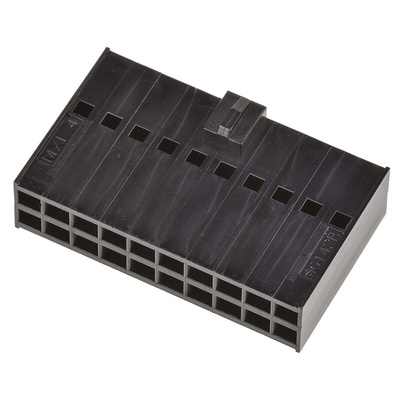

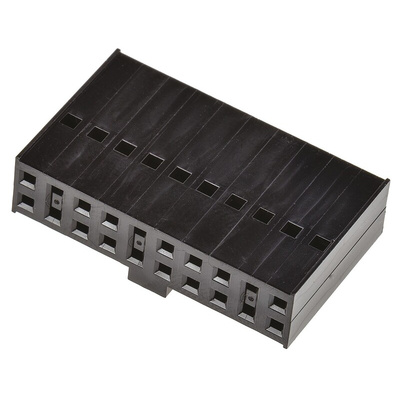

90142-0020, Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 20 Way, 2 Row, Корпус разъема

Molex C-Grid III Interconnection System Connector Housings

This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.

Features and Benefits

• 2.54 mm pitch
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles

Molex Female Connector Housing, 3A Maximum Current Per Contact, 20 Contacts - C-Grid III Series - 90142-0020

Looking for a safe way to link your wires to printed circuit boards (PCBs)? Choose this connector housing from Molex. The dual row crimp adapter has 20 contacts, allowing you to send both data and power across as many as 20 circuits. This optimises space and energy usage for improved performance. Thanks to a housing made of polyphenylene oxide (PPO) material that's resistant to heat and mechanical stress, this unit is safe to use in harsh environments. Its 2.54mm pitch ensures that there's a safe distance between conductors to prevent accidental contact that may lead to electrical hazards.

• Light weight of 1.28g for easy handling
• Compact dimensions of 25.4 (L) x 7.72 (W) x 15.24mm (D) for space efficiency in tight enclosures
• Integrated mating lock to prevent accidental disconnection, even in vibrating systems
• Wide operating temperature range of -55°C to +105°C for use in tough conditions

Applications

• Personal computers
• Robotics and automation systems
• Automotive industries

Which connectors can I use this housing with?

This housing is designed for use with connectors from the Molex C-Grid III series.

Standards

DIN 41651; HE13/14

2.54mm Molex C-Grid III Range

Datasheet

Line Drawing

Specification Sheet - 90142-0020
