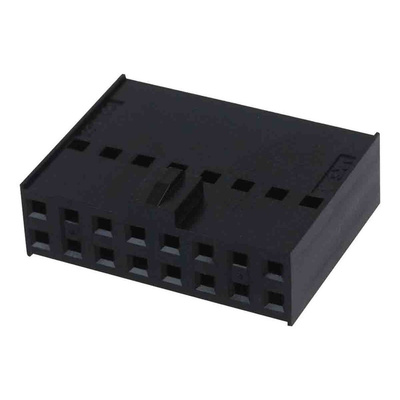

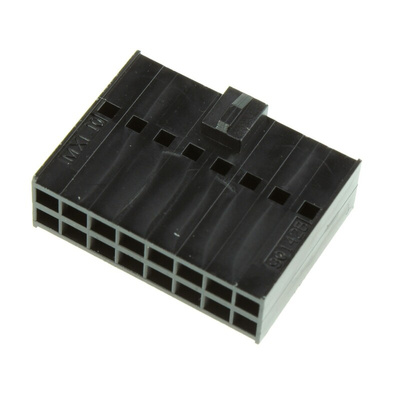

90142-0016, Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 16 Way, 2 Row, Корпус разъема

Molex C-Grid III Interconnection System Connector Housings

This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.

Features and Benefits

• 2.54 mm pitch
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles

Molex Connector Housing, Female, 16 Way - C-Grid III Series - 90142-0016

Features & Benefits

• Made from thermoplastic, so it's strong and heat resistant
• Mates with vertical and right-angled headers for versatility
• Flame retardant to improve electrical safety of devices

Applications

• In-car systems
• Computer peripherals
• Electronics assembly
• Consumer appliances

What components does this connector housing work with?

This connector housing works with components in the C-Grid III series. As this is a modular system, it's easy to adapt to suit your needs.

Standards

DIN 41651; HE13/14
