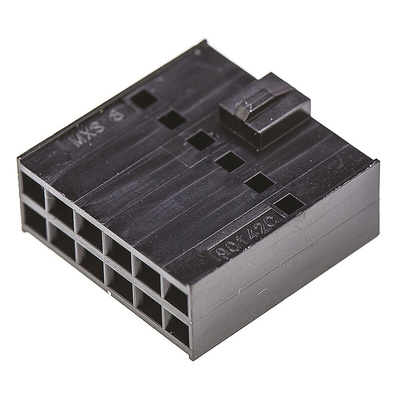

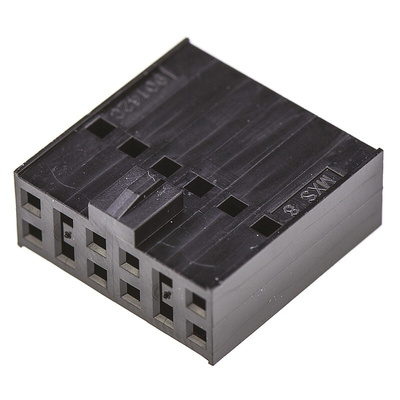

90142-0012, Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 12 Way, 2 Row, Корпус разъема

Molex C-Grid III Interconnection System Connector Housings

This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.

Features and Benefits

• 2.54 mm pitch
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles

Molex Connector Housing, Lock-To-Mating Type, 2.54mm Pitch - C-Grid III Series - 90142-0012

Shield your electrical terminal from contaminants with this connector housing from Molex. It's a double-row unit with 12 contacts, so it's a handy way to accommodate multiple conductors in one unit. The integral lock-to-mating feature means it fits snugly into a corresponding connector to deliver stable electrical transmissions. Its robust PPO body assures you of sound electrical insulation, so you can handle the unit safely without risking a shock.

Features & Benefits

• Compact 2.5mm pitch to house small conductors
• Polarised-to-mating feature cuts out the chance of misalignment
• Reliable operation in demanding conditions, thanks to an operating temperature range between -55°C and +105°C

Applications

• Medical equipment
• Pharmaceutical industry
• Consumer electronics
• Communications systems
• Server rooms

What size is this housing?

It has compact external dimensions of 15.24 (L) x 7.72 (W) x 15.24mm (D), so its footprint is small enough to slot into tight spaces.

Standards

DIN 41651; HE13/14

2.54mm Molex C-Grid III Range
