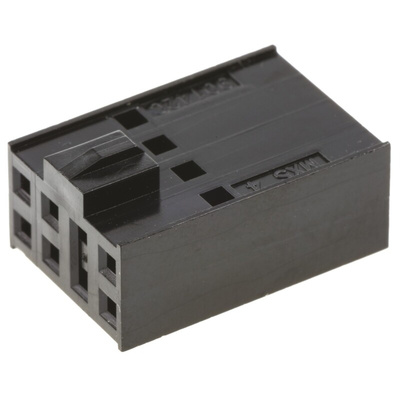

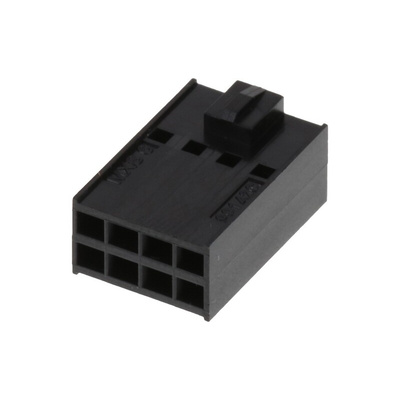

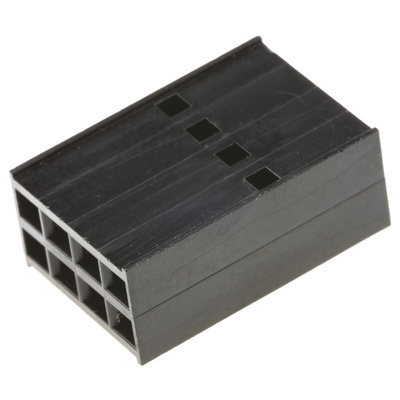

90142-0008, Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 8 Way, 2 Row, Корпус разъема

Molex C-Grid III Interconnection System Connector Housings

This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.

Features and Benefits

• 2.54 mm pitch
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles

Molex Connector Housing, Female, 8 Way - C-Grid III Series - 90142-0008

Features & Benefits

• Wide operating temperature range of -55°C to +105°C for use in extreme climates
• 3A maximum current per contact for energy efficiency and low heat dissipation
• Can be joined to connectors using a simple hand crimping tool, saving time and effort

Applications

• Personal computers
• Consumer electronics
• Security systems

Is this connector flame-retardant?

Yes, this connector stops burning in 10 seconds or less in the event of a fire, making it useful in volatile settings.

Standards

DIN 41651; HE13/14
