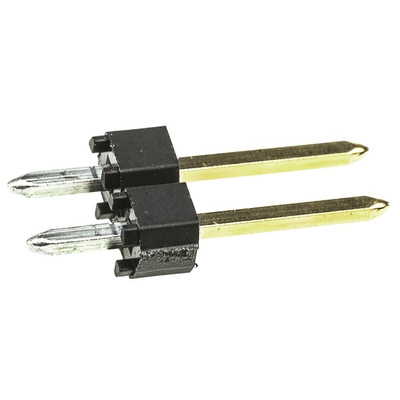

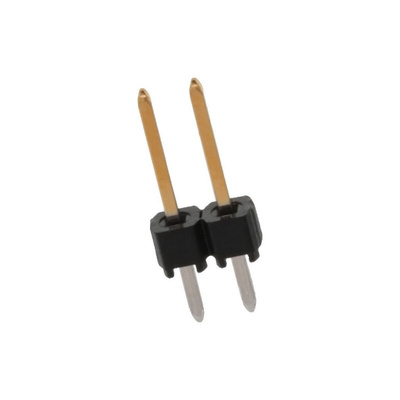

90120-0762, Molex C-Grid III Series Straight Through Hole Pin Header, 2 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

Molex C-Grid III 2.54 mm PCB Pin Headers - 90120, 90121, 90122 and 90131 Series

90120, 90121, 90122 and 90131 series PCB headers that form part of the 2.54 mm C-Grid III interconnection system designed to meet the latest industry requirements. These C-Grid III PCB headers mate with C-Grid III series PCB sockets and crimp housings for use in both board to board and wire to board applications. The headers have a breakaway design and can be cut to size for additional design flexibility. The pins of these PCB pin headers have a high retention force for a secure mating connection. The contacts, once soldered to the PCB also have a high mechanical stability. These 2.54 mm C-Grid PCB pin headers are available in single and dual row, vertical and right angle mounting configurations to suit a range of interconnection requirements.

Features and Benefits

• Suitable for use in board to board and wire to board applications
• Breakaway feature for design flexibility
• High pin retention force for secure mating connection
• High mechanical stability once soldered

Product Application Information

C-Grid III series connectors are suitable for use in the industrial, computer, medical, consumer, telecommunications and transportation industry. Applications include Desktop PCs, servers, monitors, medical equipment, white goods, exchange stations, industrial equipment and automotive safety systems and electronics.

Molex Pin Header, Gold-Plated Brass Contacts, 3A Maximum Current Rating Per Contact - C-Grid III Series - 90120-0762

To wire your circuit board in a flash, use this pin header from Molex. The versatile component is suitable for wire-to-board and board-to-board power and signal connections, making it a handy piece of kit. A breakaway design means you can cut it to size, depending on the complexity of your setup. Thanks to the unit's high pin retention force, you can count on it to securely mate with a compatible receptacle.

Features & Benefits

• Flame-retardant to reduce the risk of a fire spreading
• Gold-plated contacts for reliable electrical conductivity
• Up to 200 mating cycles, so it's suitable for plugging and unplugging

Applications

• Medical and laboratory equipment
• Consumer electronics
• Data and control rooms
• Transportation industry

Does this pin header have an insulated body?

Yes, the unit is safe to handle as it has a black resin body that provides insulation against electric shocks.

2.54mm Molex C-Grid III Range

Datasheet

Line Drawing

C-Grid III 2.54 mm Modular Interconnect Series - Brochure
