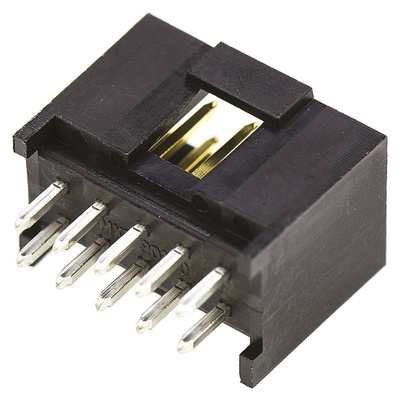

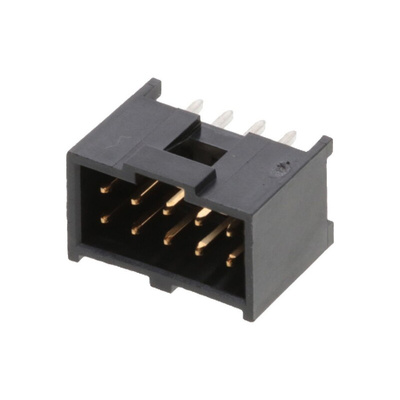

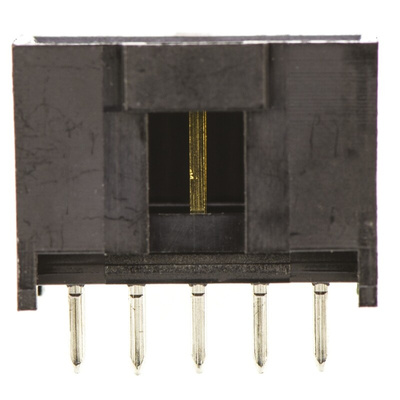

90130-1210, Molex C-Grid III Series Straight Through Hole PCB Header, 10 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded

Straight Locking Header

Straight header suitable for use with locking housings

Molex PCB Header, Brass Contact Material, 3A Current Rating - C-Grid III Series - 90130-1210

Fast, efficient wire-to-board connections are easy to make with this PCB header from Molex. As it has a double-row configuration with five pins per row, it gives you 10 high-quality contact points for data or power transmission. The robust polyester shroud guards your circuits against the knocks and scrapes of a heavy-duty setting. It's also flame-retardant and self-extinguishes in under 10 seconds, so it's a safe choice for minimising fire hazards too. For added protection in high-vibration environments, this piece of kit is compatible with locking housings.

Features & Benefits

• Straightforward through-hole mounting style ensures connections are physically and electrically secure
• Gold-plated contacts are corrosion-resistant for long-lasting performance
• Polarised to the mating part to help avoid installation errors

Applications

• Medical equipment
• Transportation industry
• Telecommunications networks

How long will this product last?

This hardy device has a mechanical durability of 100 mating cycles, so you can expect a lengthy service life.

Standards

DIN 41651; HE13/14

2.54mm Molex C-Grid III Range
