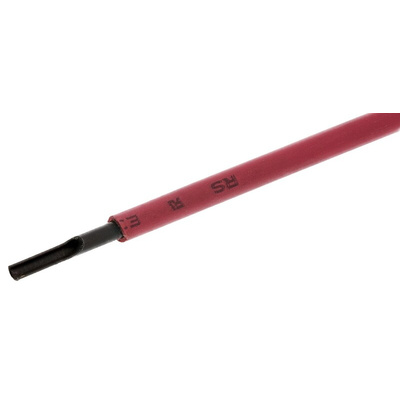

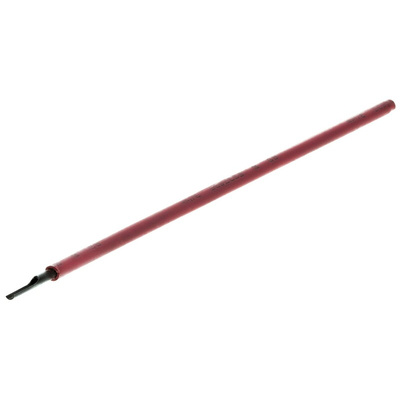

69008-0140, Molex Insertion Tool, HANDTOOL Series, Инструмент для вставки

3606881
Номер производителя: 69008-0140Производитель: Molex
Цена за шт.
16557.00 руб. (С НДС) *
Количество 10+ 25+
Цена 15579.00 руб. 15102.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Molex C-Grid III Crimp Terminals - 90119 Series

C-Grid III 90119 series female crimp terminals for use in C-Grid III 90156, 90123, 90142, 90143 and 90160 series crimp housings. These C-Grid III crimp receptacles terminals have a box design and a uniform locking system that enables them to be used inside different housing styles. The contacts are made from phosphor bronze with a choice of gold or tin plating and suitable for use with wire size ranges of 24-22 AWG or 28-26 AWG.
For suitable crimp tools see stock number 781-2728 for 24-22 AWG terminals and 781-2737 for 28-26 AWG terminals. An extraction tool (stock number 360-6897) and an insertion tool (stock number 360-6881) are also available.

Features:

• Current Rating: 3A max
• Working Voltage: 350 Vac/dc max
• Contact Plating: Selective Gold over Nickel or Tin over Nickel
• Insulation Material Headers: 15% Glass-filled Polyester (PBT)
• Housing: Polyphenylene Oxide
• Header Pin Size: 0.64 square mm
• Recommended PCB Hole Diameter: 1mm\t

Application:

• Consumer Electronics
• Commercial Vehicles

2.54mm Molex C-Grid III Range

Техническая спецификация
pdf69008-0140 Terminal Insertion Tool Data Sheet
pdfDatasheet
pdfInsertion Tool Specification Sheet
Серия:
HANDTOOL
Тип инструмента:
Insertion Tool
