RS PRO Midget Groove Indicator Light, Clear, 28 V, 40 mA, 10000h, Лампа накаливания

RS PRO Midget Groove Indicator Light, Clear, 28 V, 40 mA, 10,000 h

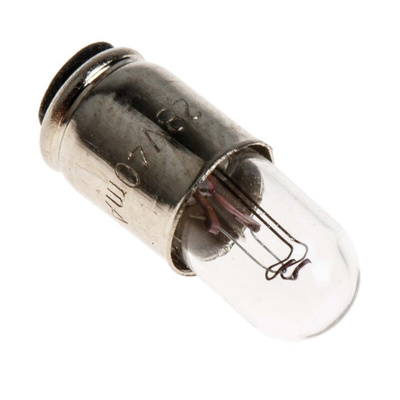

Looking for a miniature indicator lamp to illuminate a switch? A tubular S6S lamp from the RS PRO range will provide light for 10,000 hours before it needs replacing. It has a luminosity of 3.8 lm, with a voltage rating of 28 V and a current rating of 40 mA.

Measuring 15.87 mm in length by 5.84 mm in diameter, this lamp is classed as size T1 3/4. The midget groove base mates with industry-standard sockets. This clear incandescent lamp features a single contact on the base, with the body forming the other.

Tested in accordance with international standards, this product won't damage devices through electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:200). You'll also find it's RoHS compliant, so you can be assured it contains only minimal levels of hazardous substances (RoHS).

Features and Benefits

• Indicator light
• Midget groove base
• 10,000 hr life
• Luminosity of 3.8 lm
• Voltage rating of 28 V
• Current rating of 40 mA
• Length of 15.87 mm
• Diameter of 5.84 mm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:200 on electrostatic discharge
• Compliant with RoHS on hazardous substances
