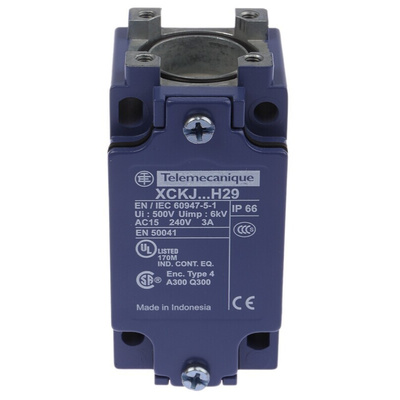

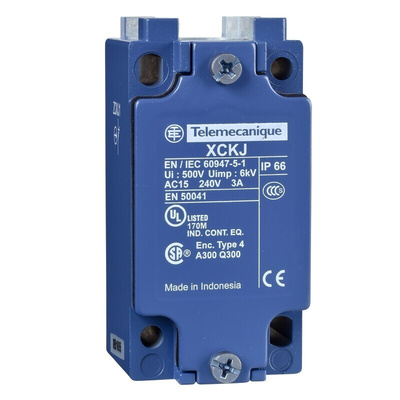

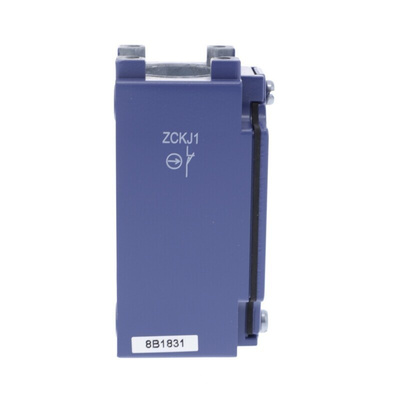

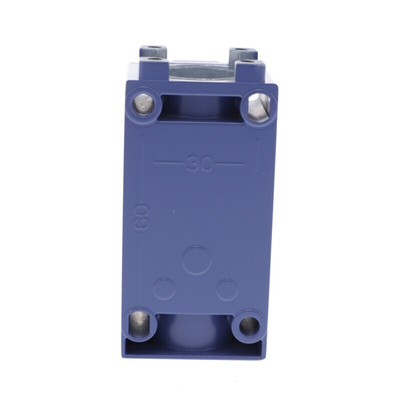

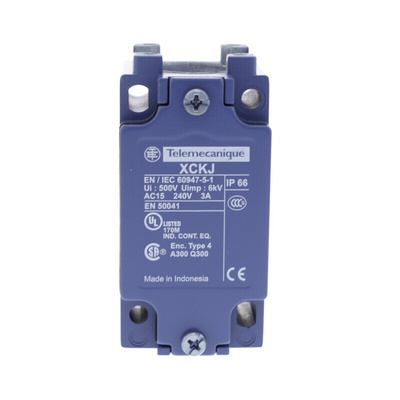

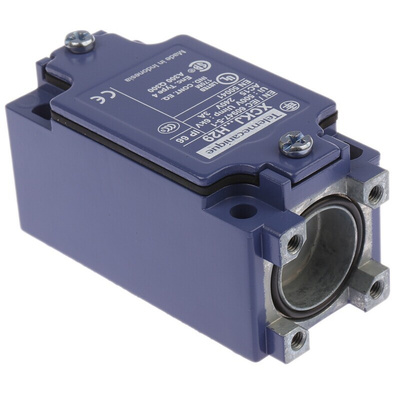

ZCKJ1H29, Telemecanique Sensors OsiSense XC Series Snap Limit Switch, NO/NC, IP65, DP, Metal Housing, 240V ac Max, 10A Max

Standard Limit Switch Body / LED (ZCKJ)

Telemecanique OsiSense XCKJ series limit switch bodies allow complete limit switch assemblies to be constructed using ZCKE/Y limit switch heads and actuators.

Features and Benefits

Snap action contacts with positive opening operation
-25 to +70°C operating temperature
Protected to IP66
Robust metal body

Standards

VDE0660, IEC947-5-1

Approvals

UL, CSA

Telemecanique Sensors Limit Switch, Snap Action, 2 Poles - OsiSense XC Series - ZCKJ1H29

Automatically control mechanical equipment with this limit switch from Telemecanique Sensors. You can team it with any heads, levers and actuators from the XCKD, XCKP and XCKT ranges, so it's versatile and widely compatible. The unit has two snap-action, silver-plated contacts, one normally open and one normally closed, so it's a smart option for safety functions. As it's capable of handling currents up to 10A, it can start, stop or slow down a device when a limit is reached. It's entry-tapped for an M20 cable with a 1.5 gland, so installation's simple.

Features & Benefits

• IP65-rated to indicate protection against dust and low-pressure sprays of water
• Wide operating temperature range between -25°C and 70°C to suit industrial environments
• Light weight of 0.31kg won't put strain on your system
• Compact dimensions of 40 (width) x 77 (height) x 44mm (depth) for use in tight spaces

Applications

• Assembly lines
• Machine control
• Safety devices
• Automatic doors

Does this switch have integrated short-circuit protection?

Yes, it's protected against short circuits by a 10A gG cartridge fuse. As soon as it detects an overcurrent, the device will trip and break the circuit, preventing potential injury and damage.

Approvals

UL; CSA
