ZCKE67, Telemecanique Sensors OsiSense XC Series Limit Switch Operating Head for Use with XC Series

Metal Limit Switch Heads (ZCKE/Y)

Complete limit switch assemblies can be constructed using ZCKJ limit bodies and ZCKE/Y limit switch heads and actuators
Rated 240V 3A at AC15 10A I_th
Snap action NC contacts with positive opening operation
-25 to +70°C operating temperature
Protected to IP66

Standards

VDE0660, IEC947-5-1

Approvals

UL, CSA

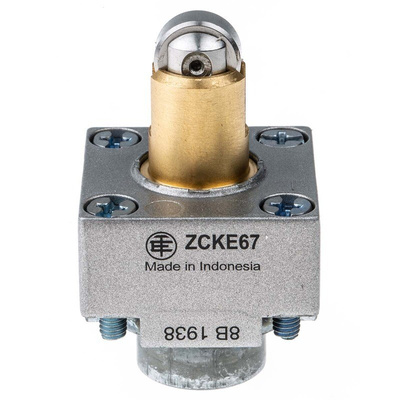

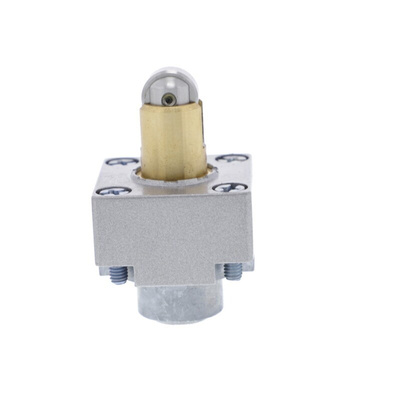

Telemecanique Sensors Limit Switch Operating Head, Roller Plunger Spring Return Type, 30° Cam Switch Actuation - OsiSense XC Series - ZCKE67

Want to complete your limit switch? Match your OsiSense body with this operating head from Telemecanique Sensors. It's an accessory designed for use with XC series switches. It works in temperatures ranging between -25°C to +70°C, so you can rest assured the device can meet the demands of a harsh environment. As it's a plunger-style operating head, it's simple in design and easy to use. Metal construction ensures reliable impact resistance, so this unit will be with you in the long run.

Features & Benefits

• Linear movement ensures precise and consistent switch activation
• Compact dimensions of 4.2 (H) x 4.5 x (W) x 8.7cm (L) means it's ideal for setups with limited space
• Light weight of 158g for minimal surface strain
• IP66 rating indicates protection against high-pressure jets of water

Applications

• Industrial conveyors
• Material handling equipment
• Robotic systems

What does a dual-direction lateral approach mean?

This unit's dual-direction lateral approach allows the operating head to be positioned in two different directions. This provides greater flexibility in installation and use.

What's the benefit of snap action NC contacts?

The quick action of this head's snap mechanism reduces the chance of electrical arcing, limiting potential electrical failure.
