XE2SP2151, Telemecanique Sensors OsiSense XC Series Limit Switch, NO/NC, DP, Plastic Housing, 240V ac Max, 3A Max

Approvals

UL, CSA

Telemecanique OsiSense XC Series Snap Action Limit Switch XE2S

For use with the Osisense XC series, Telemecanique Sensors offers this limit switch featuring a snap action type contact operation. Snap action means the actuator needs very little force turning small movements in to large control. Designed in plastic housing this switch also features silver plated contacts to prolong life and has screw clamp terminals with a clamping capacity of 1 x 0.34...2 x 1.5 mm².

Compatible with; XCKD, XCKJ, XCKL, XCKM, XCKP, XCKS and XCR

Features and Benefits:

• 0.01 mm/s actuation speed
• 2 pole 1 NO + 1 NC
• 3A max contact current
• 240V max contact voltage AC

Protection ratings & Safety features:

• IP20 degree of protection
• Standards VDE0660, IEC947-5-2
• Approvals UL, CSA
• 10 A by gG cartridge fuse short circuit protection

Applications - Operated by the moving, motion or presence of a part or object, limit switches are generally used for controlling machinery. They have a wide variety of uses such as safety interlocks, for counting passing objects or as part of a larger control system. Limit switches are usually easy to install, rugged, heavy duty and reliable. Applications of this limit switch include:
• Industrial
• Automation & Process Control
• Power Management

Standards

VDE0660, IEC947-5-2

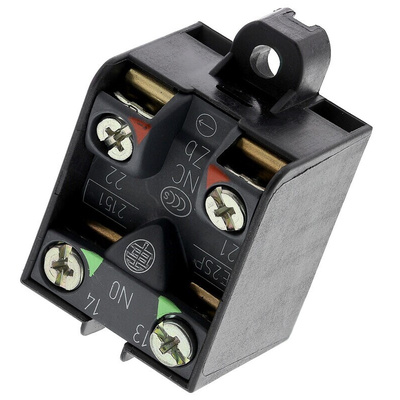

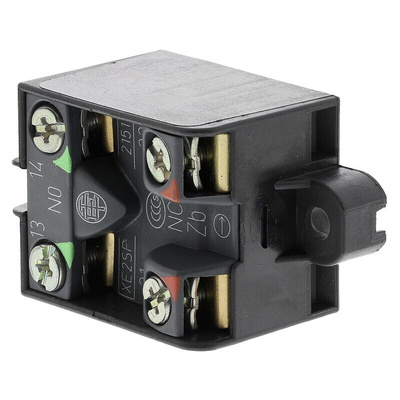

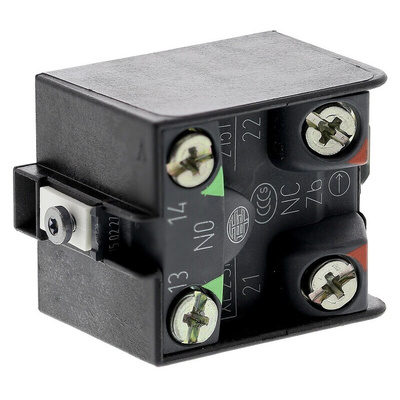

Limit Switch Contact Block xe2sp2151
