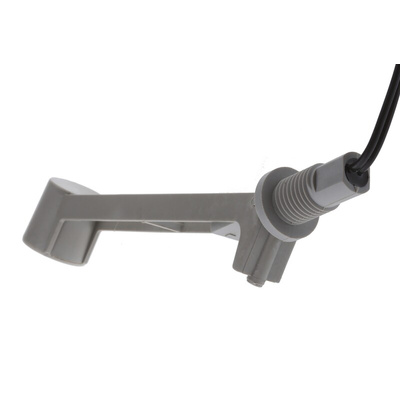

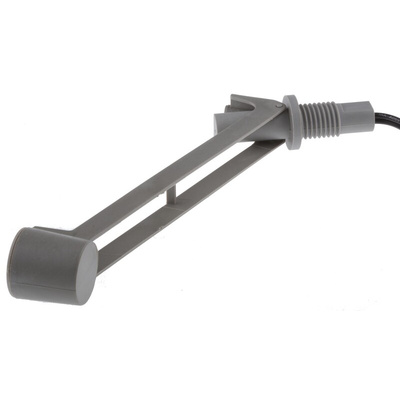

RSF26Y100RF, Sensata / Cynergy3 Cynergy3 RSF20 Series Direct Mounting Polyphenylene Sulfide Float Switch, Float, 1m Cable, NC, 240V ac Max, 120V dc Max

Drop Float Switch

A unique design switch which keeps the pivot area free from the fluid making them ideal for use in hot drink vending machines etc. Drop float types for monitoring upper level and extended drop float types for monitoring lower level in a tank.

Float positioned below the switch in N/C position
Switch opens well before liquid level reaches the float pivot
Polypropylene and PPS are WRAS approved, products for use in hot and cold water
UL recognised (excludes 228-1964)

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

Supplied with

0.5m of PVC 16//0.2 cable (polypropylene and polysulfone ETFE) (PPS).

Sensata Cynergy3 Direct Mounting Float Switch, 1m Cable Length, NC - RSF20 Series - RSF26Y100RF

This float switch from Sensata Cynergy3 notifies you of changes in the liquid levels inside a container. The device has an extended drop float actuator that keeps the switch housing and float pivots out of the liquid. This helps to eliminate limescale, making it suitable for use in wall kettles and hot vending machine applications. When the liquid level is low, the switch remains in the closed position. The switch opens up when the liquid level rises, helping to prevent overflow when filling the container.

Features & Benefits

• M12 circular threaded terminal creates a secure connection
• Broad operating temperature range of -10°C to +100°C for use in extreme environments
• Viton silicone gasket material ensures the liquid doesn't leak through the switch fitting
• Snap-action mechanism for rapid switching action

Can this float switch be used in food industry applications?

Yes, the float switch's polyphenylene sulfide (PPS) material is a strong organic polymer that won't contaminate food items, making it safe to use in the food industry.

How long is the cable on this float switch?

The cable measures 1m long for an extended reach.
