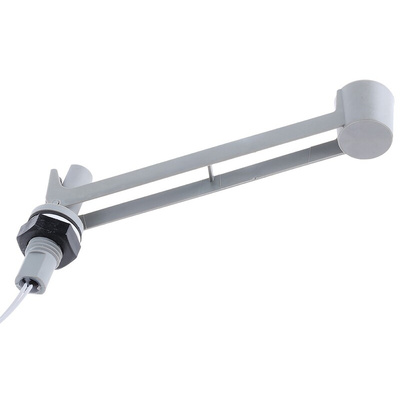

RSF26Y050TG, Sensata / Cynergy3 Sensata/Cynergy 3 RSF20 Series Direct Mounting Polyphenylene Sulfide Float Switch, Float, 500mm Cable, NC

Drop Float Switch

A unique design switch which keeps the pivot area free from the fluid making them ideal for use in hot drink vending machines etc. Drop float types for monitoring upper level and extended drop float types for monitoring lower level in a tank.

Float positioned below the switch in N/C position
Switch opens well before liquid level reaches the float pivot
Polypropylene and PPS are WRAS approved, products for use in hot and cold water
UL recognised (excludes 228-1964)

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

Supplied with

0.5m of PVC 16//0.2 cable (polypropylene and polysulfone ETFE) (PPS).

RSF20 Series Low Level Switch Datasheet
