FFSMC10C, Sensata / Cynergy3 Sensata/Cynergy 3 FFSMC Series Cable Mount PE Float Switch, Float, 5m Cable, Direct Load, 250V ac Max, 110V dc Max

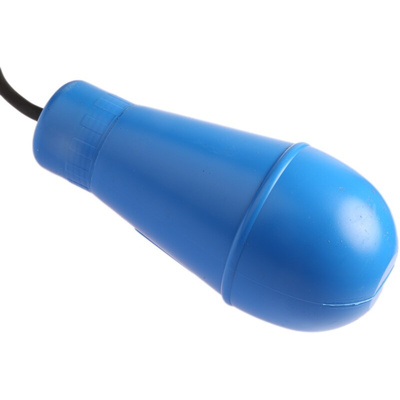

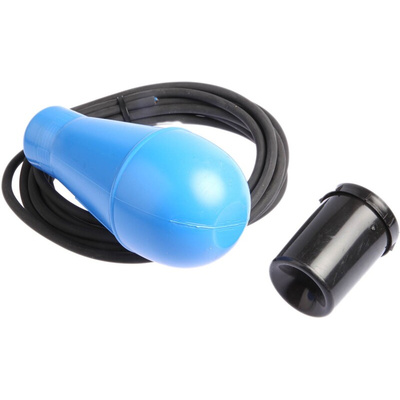

FFSMC Float Switch (Submerged)

FFSMC submerged-type float switches may be used in environments where wide and/or rapid fluctuations in ambient fluid temperature occur. The blue polyurethane-bodied model (361-1833) is suitable for use within sewers and industrial waste systems. The design incorporates a self-weighted cable end float switch for use within turbulent industrial fluids and fluids with suspended agglomerates, such as sewer water. The red-bodied model (361-1849) is suitable for use in with fuel oils, such as diesel.

Features

o - Water resistant up to a depth of 100m, and insensitive to humidity and condensation
o - Rounded polyethylene blow-moulded body to prevent the accumulation of solids
o - Switching capacity: 10A at 250Vac
o - Hermetically-sealed closed-cell expanded polyurethane moulding surrounds the switch fitted with internal weight fixing the centre of gravity and rotation close to the cable entry; External counterweight supplied to adjust the pivot position
o - Fitted with 5m cable (PVC cable fitted to blue-bodied model for sewer/waste water (361-1833); polyurethane cable fitted to red-bodied model (361-1849) for fuel oil environments)

Sensata Cynergy3 Cable Float Switch, Direct Load, 5m - FFSMC Series -FFSMC10C

Meet the demands of regulating wastewater levels with this specially designed Sensata Cynergy3 switch. It's a durable choice that's suitable for use in turbulent fluids such as sewage water. The hermetically sealed unit can be submerged in up to 100m of water, and its rounded polyethylene body prevents the accumulation of solids. An external counterweight provides flexibility in adjusting the pivot position to suit your installation needs. This heavy-duty device will switch a maximum direct load of 10A and operate safely in up to 10bar of pressure.

Features & Benefits

• Suitable for environments where wide and/or rapid fluctuations in ambient fluid temperature occur
• Fitted with 5m PVC cable for installation flexibility

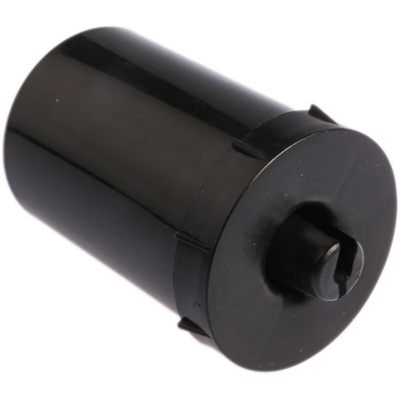

• External counterweight supplied to adjust the pivot position

How does a float switch work?

A float switch is most frequently used in a tank to regulate the minimum and maximum liquid levels. When the fluid level reaches a minimum level, the switch signals a pump to operate and refill the tank. When the maximum liquid level is reached, the switch tells the pump to stop supplying. This means the fluid level in the tank is maintained within a pre-set range.
