FFSMC10CU, Sensata / Cynergy3 Sensata/Cynergy 3 FFSMC Series Cable Mount PE Float Switch, Float, 5m Cable, Direct Load, 250V ac Max, 110V dc Max

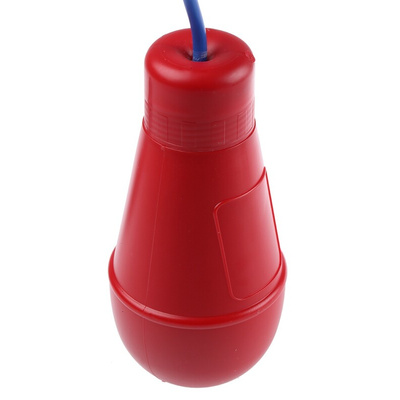

Sensata Cynergy3 Submerged Cable Mount Float Switch, 250V AC, 110V DC - FFSMC Series - FFSMC10CU

Accurately control the level of turbulent fluids with this submerged float switch from Sensata Cynergy3. The self-weighted cable-end float is water-resistant up to a depth of 1m, so it can be safely used in demanding applications. An outer casing made of strong blow-moulded polyethylene offers excellent durability, and the entire device is hermetically sealed for a high level of protection against fluids. This switch is commonly used to control the level of substances containing suspended agglomerates, such as sewer water.

Features & Benefits

• Self-cleaning switch element for reduced maintenance time
• Fitted with an internal weight to efficiently fix the switch's centre of gravity and control rotation
• Broad operating temperature range of 0°C to +55°C for use in a variety of environments

What causes the switching action on this float?

Float switches typically consist of a float with an internal magnet that slides up and down a stem, which holds a hermetically sealed, magnetically calibrated switch. As the liquid level moves up and down in the tank, the float’s magnet activates the internal reed switch to control the liquid level.

FFSMC Series Float Switch Datasheet

Installation Sheet - Float Switches - Installation Notes

Selection Guide - Level Sensors & Switches
