RS PRO Cylindrical Reed Switch, NO, 200V, 500mA, Герконовый выключатель

Reed switch and magnet fitted into separate, identical housings
Fully threaded for adjustment
Cable length 280mm

Applications:
Position and limit sensing
Linear actuators
Door and window security

Magnet stock no. 361-7011 and sensor 361-4933 must be ordered separately.

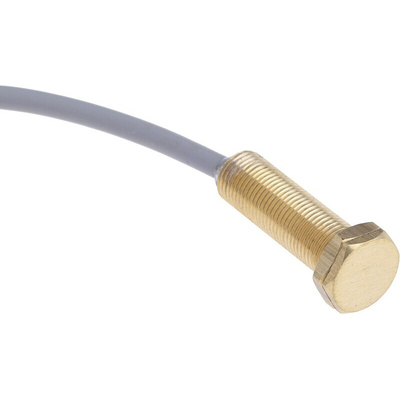

RS PRO Magnetic Proximity Switch - Cylindrical Reed Switch

RS PRO cylindrical reed switch has a current rating of 0.5 A and voltage rating of 200 V and measures 28 x 11 mm. This fully threaded switch is used in position and limit sensing, linear actuators, door and window security. Suitable magnet (361-7011) can be purchased separately.

Reed switches are a type of industrial switch and are used to interrupt or redirect the flow of electricity within a circuit. Reed switches are composed of two ferrous reeds in a small glass casing. The switches are magnetised and move when the magnetic field is moved towards the switch. A reed switch can turn on or off when a magnetic field is nearby.
RS PRO have a great range of industrial magnetic proximity switches and magnetic proximity sensors to suit many different applications.

Features and Benefits:

Reed switch and magnet fitted into separate, identical housings
Suitable cylindrical proximity switch magnet 361-7011 can be purchased separately
Fully threaded for adjustment - M8 threaded
Normally Open contact position
Cable length 280 mm
Switching Voltage: 200 V ac/dc (Max.)
Switching Current: 0.5A (Max.)
Switching Distance 10 mm Min.
Cable - 2 x Round 0.14 mm² PVC covered Grey and insulated Brown / White

Typical Applications:

Reed Proximity Switches and Proximity Sensors (also known as magnetic sensors) are popular due to their reliability and simple design.
Magnetic proximity switches are a type of electromagnetic switch which controls the flow of electricity within a circuit. Magnetic proximity switches can be used in the following applications:
Position sensing
Linear actuators
Security switching
Safety guards/devices

FAQs
What is a magnetic proximity switch?
Magnetic proximity switches are a type of electromagnetic switch which controls the flow of electricity within a circuit.

What is the difference between a proximity switch and a proximity sensor?
A proximity sensor is a sensor which is able to detect the presence of nearby objects without any physical contact. Proximity switches open or close an electrical circuit when they make contact with or come within a certain distance of an object.
