T0052704099, Weller Soldering Accessory Solder Bath, for use with 80 W Power Unit

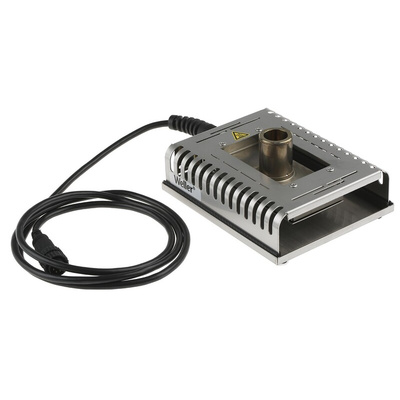

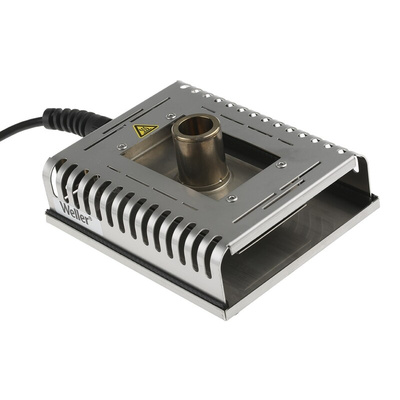

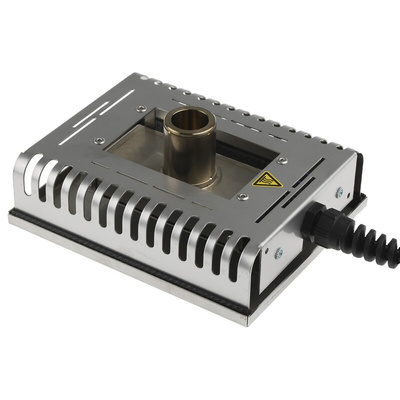

Weller WSB 80 Solder Pot

Introducing the WSB 80 solder pot from Weller, the perfect solution for tin coating wire and preparation of small electronics components. This solder bath device is compatible with Weller WS 80, WSD 80 or WMD-3 solder stations.

How does it work?

The Weller WSB 80 solder pot should be connected to the appropriate solder station power source, fill the tube in the centre of the pot with lead-free solder. Once the solder has taken a fluid form you are ready to start the tin coating process. Use flux prior to tinning for excellent results.

Features and Benefits

• WSB 80 Solder Pot 80 W - 24 V


• For tin coating and preparation of small electronics components and leads


• Lead-Free tip tinner


• Heat-up time ∼ 7 min (50 °C - 350 °C)


• Useful rework preparation tool


• Temperature controlled 50°C to 450°C


• Can be used to tin wire ends & leads


• Single Unit


• Place in any position you desire


• Easy to assemble with Soldering Station


• Faster tin-coating compared to soldering iron


• Easy cleaning

Dimensions

• Length 150 mm x Width 120 mm x Height 70 mm

Compatible Solder Stations

• Weller WS 80 power unit: RS stock no. 307-9188


• Weller WD1 power unit: RS stock no. 510-2038


• Weller WD2 power unit: RS stock no. 510-2050

Typical Applications

Solder pots is an essential accessory used in applications such as;

• Electrical & Electronic Servicing


• Soldering & Desoldering


• DIY hobbyist
