CKRD2410, Sensata / Crydom CKR Series Solid State Relay, 10 A rms Load, DIN Rail Mount, 280 V rms Load, 32 V Control, Реле

DIN Rail, SSR, Series CKRA/CKRD, 10 to 30A, a.c. Output

24 to 530Vac switching
Box clamp terminals
Ready to mount and use
Industry standard 22.5mm narrow profile
Operating Temperature Range -30 to +80°C

Approvals

UL; CSA; VDE

Sensata | Crydom Solid-State Relay, 8 to 12mA Input Current, 22.5mm Width - CKR Series - CKRD2410

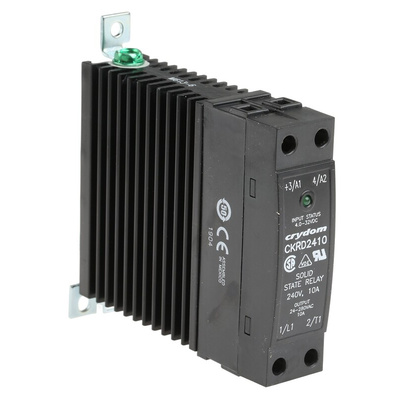

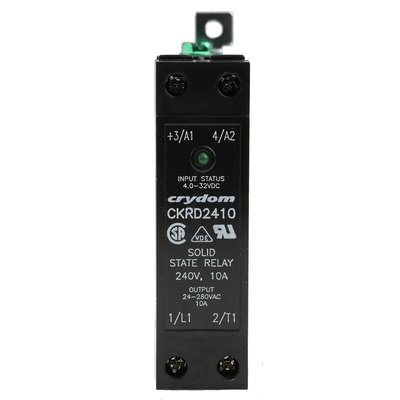

Quickly switch large electrical loads with this solid-state relay from Sensata | Crydom. As it switches voltages between 4 and 32V DC, the device is compatible with a broad range of low-voltage devices. A green LED indicator displays the unit's input voltage status for clear diagnostics and troubleshooting. The thermally conductive epoxy encapsulation is resistant to heat and wear for durability in harsh operating conditions. You'll find SSRs like this one used in automated robotics and medical equipment.

Features & Benefits

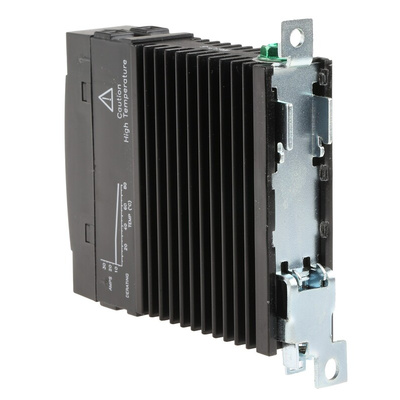

• Built-in anodised aluminium heat sink for reliable temperature management
• Designed for mounting on a DIN rail for ease of installation
• Light weight of 280g to place minimal strain on your equipment
• Broad operating temperature range between -40°C and +80°C for use in demanding environments
• Compact dimensions of 81.3 (L) x 22.5 (W) x 99mm (H) to maximise space on crowded rails

What's the difference between solid-state and mechanical relays?

Solid-state relays like this product don't have moving parts, while mechanical relays do. This means that SSRs have faster response times and longer service lives.

Approvals

UL E116950; CSA LR81689; VDE 129156UG; CE; ISO

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Datasheet - CKR

Instruction Sheet - CKRD2410

Line Drawing - CKRD2410
