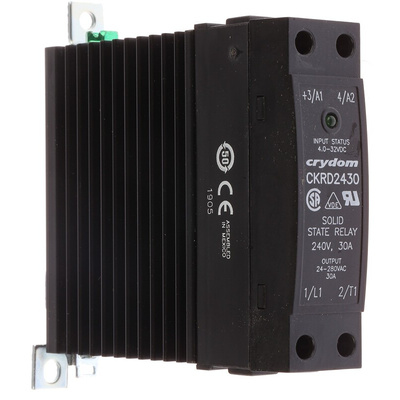

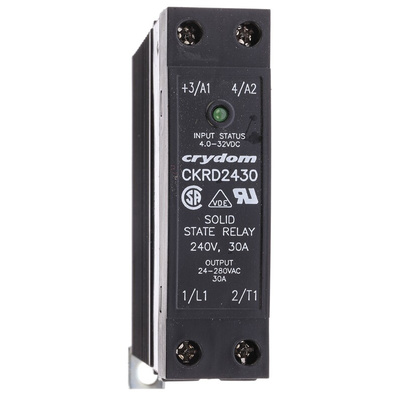

CKRD2430, Sensata / Crydom Solid State Relay, 30 A rms Load, DIN Rail Mount, 280 V rms Load, 32 V Control, Реле

DIN Rail, SSR, Series CKRA/CKRD, 10 to 30A, a.c. Output

24 to 530Vac switching
Box clamp terminals
Ready to mount and use
Industry standard 22.5mm narrow profile
Operating Temperature Range -30 to +80°C

Approvals

UL; CSA; VDE

Sensata | Crydom Solid-State Relay, 280g Weight, 30A Rated Load Current - CKR24 Series - CKRD2430

Use this solid-state relay from Sensata | Crydom to safely switch between loads in your electric circuits. It has a thermally conductive epoxy casing that provides resistance to impact and heat, making it a reliable choice for use in harsh environments. This device has no moving contacts, so there's minimal risk of wear, giving you long-lasting performance. A green LED indicator displays the operational status of your machinery for easy troubleshooting. You'll find this unit used in medical equipment.

Features & Benefits

• Wide operating voltage range between 24 and 280V AC for use in light to medium-duty applications
• Aluminium baseplate is resistant to impact and corrosion
• Zero-cross switching function to generate minimal electrical noise

What's the operating temperature range of this device?

This device has a broad operating temperature range between -40°C and +80°C, so it's suitable for use in demanding environments.

What's the rated load current of this relay?

This component has a maximum load current of 30A, making it a good choice for use in high-powered systems.

Approvals

UL E116950; CSA LR81689; VDE 129156UG; CE; ISO

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Installation Sheet - CKRD2430

Line Drawing - CKRD2430
