CKRA2410, Sensata / Crydom CKR24 Series Solid State Relay, 10 A rms Load, DIN Rail Mount, 280 V rms Load, 280 V rms Control, Реле

Sensata | Crydom Solid-State Relay, 110 to 280V AC Control Voltage Range, 110Vrms Turn-On Voltage - CKR Series - CKRA2410

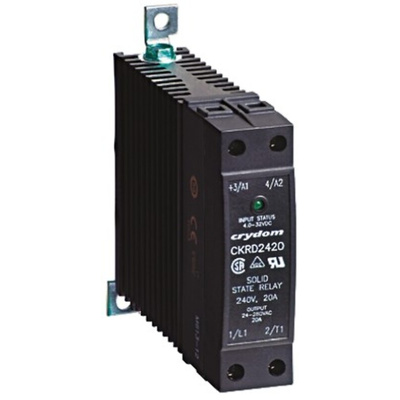

Send power to your circuits in a flash with this solid-state relay from Sensata | Crydom. It converts an incoming electrical signal to an optical one to make or break the circuit. As this unit doesn't have any moving parts, you can trust it won't wear down. A control voltage range between 110 and 280V AC means it's up to the task of switching a wide variety of electrical loads. You can use this relay to manage your robotics and telecommunication devices.

• Turn-on time of 10ms and turn-off time of 40ms for rapid-fire switching
• LED indicator for quick status monitoring
• Encapsulated in a thermally conductive epoxy case to help prevent overheating
• Wide operating temperature range between -40°C and +80°C for use in demanding conditions

How do I mount this relay?

You can mount this SSR by simply clipping it to a DIN rail, so it's a cinch to install without the need for complex tools.

How large is this relay?

Thanks to its compact dimensions of 81.9 (L) x 22.5 (W) x 99mm (H), you can fit this relay into tight spaces.

Approvals

UL E116950; CSA LR81689; VDE 129156UG; CE; ISO

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Datasheet - CKR

Instruction Sheet - CKRA2410

Line Drawing - CKR SERIES
