CKRA2430, Sensata / Crydom CKR Series Solid State Relay, 30 A rms Load, DIN Rail Mount, 280 V rms Load, 280 V rms Control, Реле

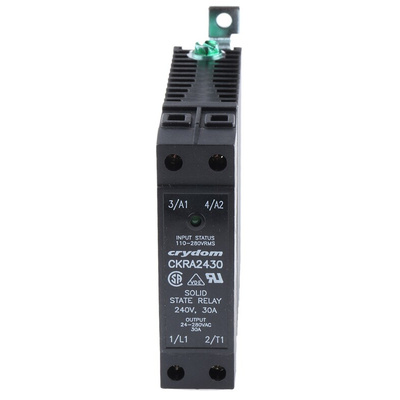

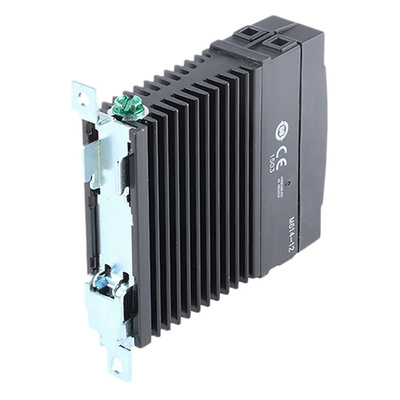

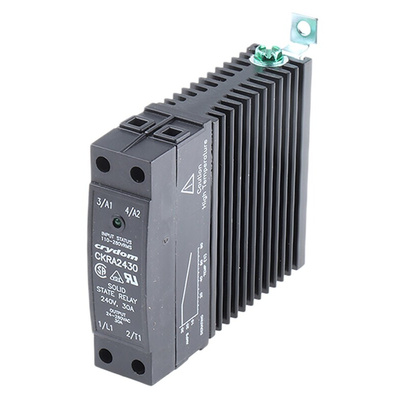

Sensata | Crydom Solid-State Relay, Zero-Cross Switching Type, 10ms Turn-On Time - CKR Series - CKRA2430

Take charge of your machinery with this solid-state relay from Sensata | Crydom. It opens and closes your circuit when it detects an optical signal, giving you automated control over your equipment. As it works without moving parts, the unit cuts back on mechanical wear for long-lasting performance. Installation is a snap as you can simply clip it to a DIN rail. Thanks to a fast turn-on time of 10ms and turn-off time of 40ms, the component keeps pace with fast-moving processes. Use a relay like this one in automated assembly lines and power distribution systems.

• Box clamp terminals for secure wiring
• Compact dimensions of 81.9 (H) x 22.5 (W) x 99mm (D) to maximise space on your rail
• Thermally conductive epoxy housing for resistance to heat
• Rated load current of 30A for use in heavy-duty applications

How do I monitor the status of this SSR?

The unit comes with a green LED indicator that lights up when it detects an input voltage, so it's a cinch to check it's connected correctly.

Approvals

UL E116950; CSA LR81689; VDE 129156UG; CE; ISO

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Instruction Sheet - CKRA2410

Line Drawing - CKR SERIES
