CKRD4830, Sensata / Crydom CKR48 Series Solid State Relay, 30 A rms Load, DIN Rail Mount, 530 V ac Load, 32 V Control, Реле

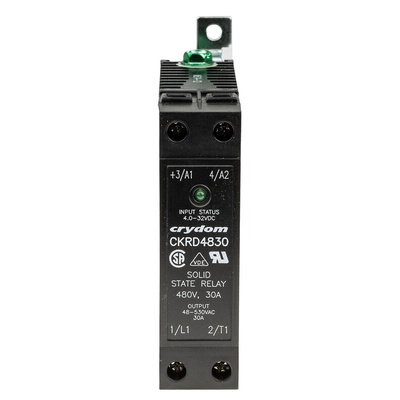

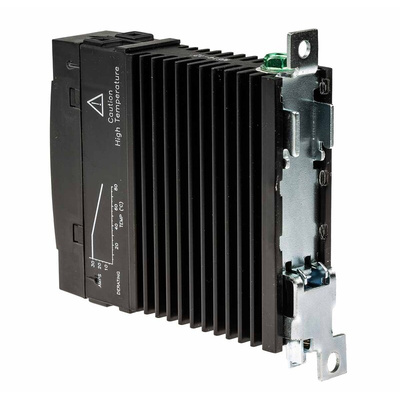

Sensata | Crydom Solid-State Relay, Zero-Cross Switching Type, 0.15 to 30A Load Current - CKR48 Series - CKRD4830

Keen to stay in control of your high-power industrial loads? Make the switch to this solid-state relay from Sensata | Crydom. Thanks to its zero-cross switching function, it comes on when the load voltage is close to zero, which reduces electrical noise generated during signal transmission. The component has a thermally conductive epoxy housing that holds fast against heat and impact, so you can count on it in rugged industrial environments. Thanks to an operating voltage range between 48 and 530V AC, it's a top-notch choice for low-voltage applications. Relays like this one are an essential component in robotics and automation systems.

Features & Benefits

• DIN rail mounting is simple and doesn't need complex tools, saving you time and effort
• Compact dimensions of 81.3 (L) x 22.5 (W) x 99mm (H) for installation in setups with limited space
• High dielectric strength of up to 4000Vrms to minimise the risk of electrical damage
• Green LED indicator for easy monitoring and diagnosis

How do I maintain this SSR?

This unit has no moving parts, so it's immune to mechanical wear and doesn't need any preventative maintenance.

Approvals

UL E116950; CSA LR81689; VDE 129156UG; CE; ISO

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
