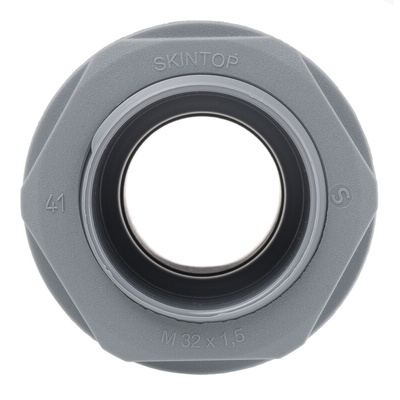

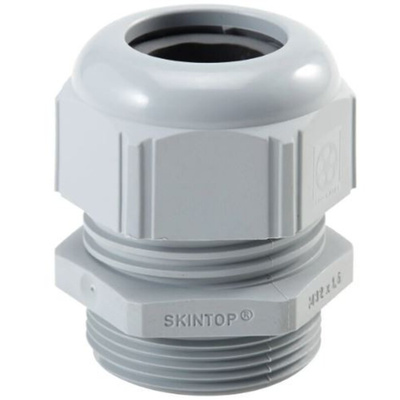

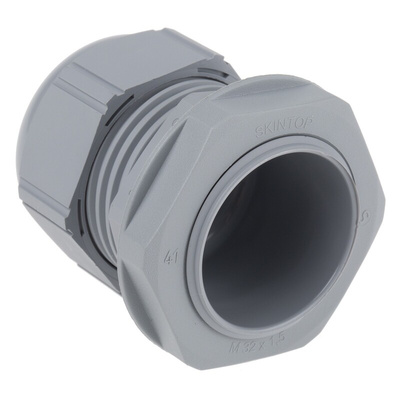

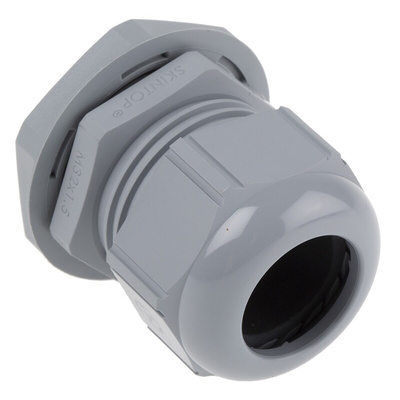

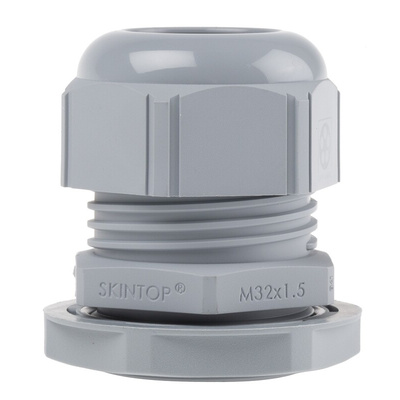

53111040+53119040, Lapp SKINTOP Series Grey Polyamide Cable Gland, M32 Thread, 9mm Min, 21mm Max, IP66, IP68, IP69K, Кабельный ввод

Skintop IP69K ST-M Metric Nylon Gland

From Lapp, the Skintop ST series of cable glands have a tough polyamide construction, and offer a high degree of environmental protection. Whether you’re connecting to panels, junction boxes or machinery casing, these cable glands are an easy-to-install solution in cable management.

With a simple screw-on design, the Skintop ST series ensures fast assembly times, and offer a variable clamping range with excellent strain relief.

These cable gland also feature a high degree of temperature, mechanical and oil resistance. Coupled with their permanent vibration protection, this makes them ideal for use with heavy machinery in industrial environments.

This series of glands have metric measurements.

Features and Benefits

• Easy to Install
• Wide Clamping Range
• Metric Measurements
• IP68, 5 bar Protection
• Mechanical Resistance
• Temperature Resistance
• Oil Resistance
• Chemical Resistance
• Vibration Protection

Applications

The Skintop ST series of cable glands can be used where ever wires and cables need to be inserted into panel-style housings through pre-bored holes. Their space saving design makes them ideal for;

• Machine and Equipment Manufacturing
• Photovoltaic and Solar Electric Technology
• Control and Automation Technology

Environment

These cable glands are sealed to IP68 and have a 5 bar pressure rating. This means they have excellent protection against dust ingress and are waterproof even up to shallow submersion. As such, they are suitable for use in harsh environments and even some open air applications.

Accessories

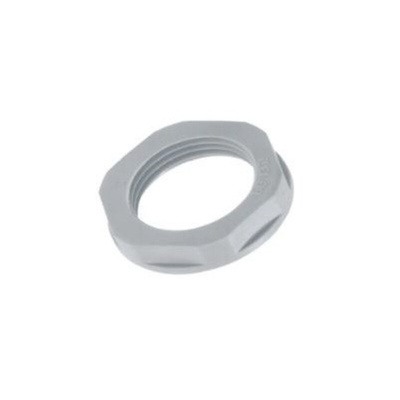

Skintop ST cable glands can be used with corresponding metric sized nylon locknuts.

• 444-2975 are grey M12 Locknut, IP68
• 444-2981 are grey M16 Locknut, IP68
• 444-2997 are grey M20 Locknut, IP68
• 444-3007 are grey M25 Locknut, IP68
• 444-3013 are grey M32 Locknut, IP68
• 444-3079 are grey M12 Locknut, IP68
• 444-3085 are black M16 Locknut, IP68
• 444-3108 are black M20 Locknut, IP68
• 444-3114 are black M25 Locknut, IP68
• 444-3120 are black M32 Locknut, IP68
• 811-0821 are black M12 Locknut, IP68, 100 Pack

Standards

Strain relief in accordance to EN50262

LAPP Cable Gland, M32 Thread, 10mm Thread Length - SKINTOP Series - 53111040+53119040

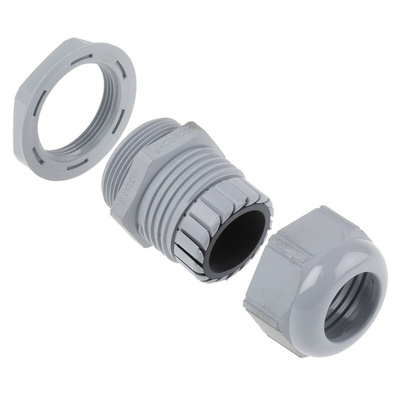

Looking for a reliable way to secure your cable to the body of your machine? Turn to this cable gland from LAPP. Its body screws onto the mounting surface and is held in place by the supplied locknut. This ensures a reliable connection that resists impact and vibration. For durability, the unit is made from glass fibre-reinforced polyamide to deliver thermal resistance. As the gland offers strain relief to your cable, it prevents wear caused by bending and twisting.

• Supports cable diameters ranging from 9 to 21mm for versatility
• Polyamide cable body is UV-resistant to withstand outdoor sunlight exposure
• Integrated spanner-supporting surface on locknut helps prevent scratches during assembly

Applications

• Medical technology
• Control cabinets
• Automotive engineering

What's the temperature rating of this cable gland?

The component has a wide operating temperature range between -20°C and +100°C so it can withstand harsh environments.

VDE135320

UL E79903
