AZM190-B3/2X15, Schmersal Actuator for Use with AZM 190/TZK Safety Switch

AZM190, Emergency or Manual Release

30N latching force
Manual release in the case of power failure (stock numbers 617-5116 and 617-5093) (M3 release key available separately - stock no. 362-2849)
Emergency release versions - (stock numbers 362-2596 and 362-2619) mount only in the guarded area
Power to unlock
Actuating head can be fitted in 4 positions (90° steps)

Note

Actuator for 617-5116 and 617-5093 is not supplied and must be ordered separately

Standards

IEC/EN60947-5-1, BG-GS-ET-19

Approvals

BG,UL,CSA

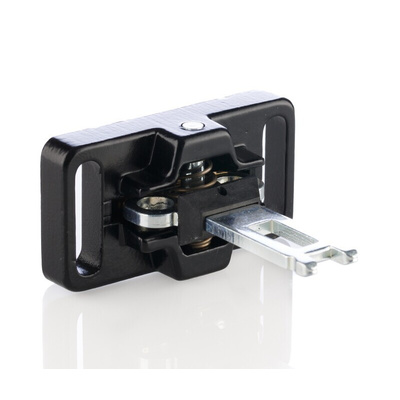

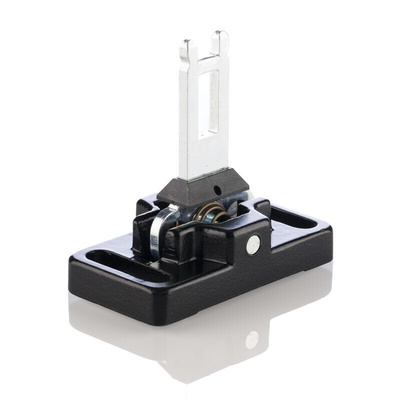

Schmersal Actuator, For Use with AZM 190/TZK Safety Switch - AZM 190 Series - AZM190-B3/2X15

Prevent movable safety guards from opening in dangerous operating conditions with this actuator from Schmersal. The reliable device has a high latching force of 30N to prevent the accidental or unauthorised opening of critical safety equipment. Its metal construction provides good resistance to abrasion and wear for an extended working life. This actuator is designed for use with the AZM 190/TZK safety switch, making it simple to create a complete set-up.

Features & Benefits

• Zinc-plated metal actuator for superior strength and protection against corrosion
• Meets Restriction of Hazardous Substances (RoHS) standards, meaning it contains only limited amounts of any harmful materials
• Light weight of 80g to reduce strain and bulk on mounting surfaces

Applications

• Hospitals
• Automated assembly lines
• Robotics
• Food and beverage industries

In what position should you mount this actuator?

This versatile actuator can be mounted in any position that suits your application, making it a versatile choice. If you want to change its position, simply loosen its screws, transpose its head and re-tighten the screws. It's important to make sure that dust can't enter the actuator opening to ensure reliable performance.
