AZM 161-B1E, Schmersal Standard Actuator for Use with AZM 161 Safety Switch

AZM161, Manual Release

Double insulated thermoplastic enclosures with screw terminals and 6 contacts
Manual release in the case of power failure - see accessories for M5 release key
Actuating play 5.5mm in direction of actuation
30N latching force

Note

Actuating key not included, see accessories. Interlocks with power to lock should only be used after a thorough evaluation of the risk since the guarding device can immediately be opened in the event of failure of electrical power supply or when the main switch is opened.

Caution

EN60947-5-1 standard is only met if entire system consisting of safety sensor (AZM161), magnet (AZM) and a safety monitoring module (AES) is used.

Standards

IEC/EN60947-5-1, BG-GS-ET-19

Approvals

BG, UL, CSA

Schmersal Actuator, For Use with AZM 161 Safety Switch - AZM 161 Series - AZM 161-B1E

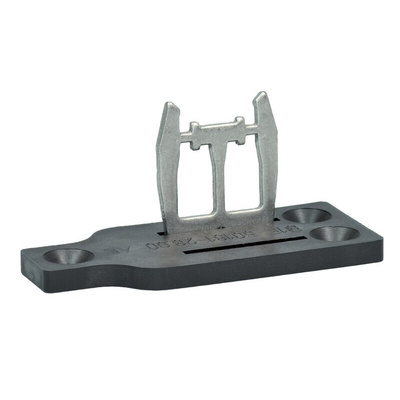

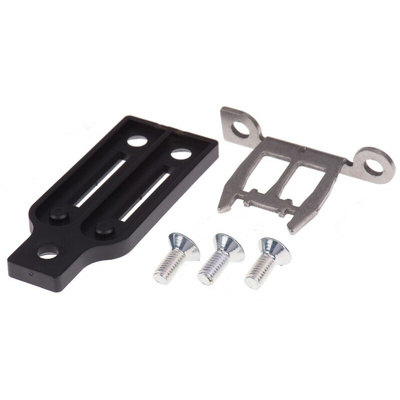

Prevent accidental access to hazardous areas of a factory with this actuator from Schmersal. It works together with a safety switch to keep sliding safety doors secure. The actuator is made of stainless steel for superior corrosion resistance and strength, and its thermoplastic handle stands up well to wear-and-tear. This means it will last a long time and operate reliably, even in harsh industrial environments. The actuator is supplied with tamper-proof screws to eliminate the risk of removal by unauthorised personnel, ensuring greater workplace safety.

Features & Benefits

• Strong latching force of 30N for improved security
• Light weight of 29.3g ensures mounting surfaces are not put under any significant strain

Applications

• Food and beverage industries
• Chemical processing plants
• Medical and health facilities

How much play does this actuator have?

This actuator has a play of 5.5mm in the direction of actuation.

Is this component compatible with other Schmersal actuators?

This actuator is designed for use only with the AZM 161 solenoid interlock safety switch. It can't be used with other safety switches.
