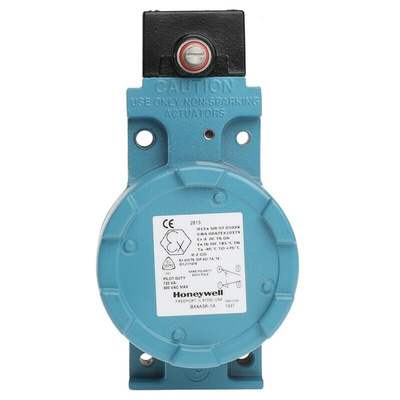

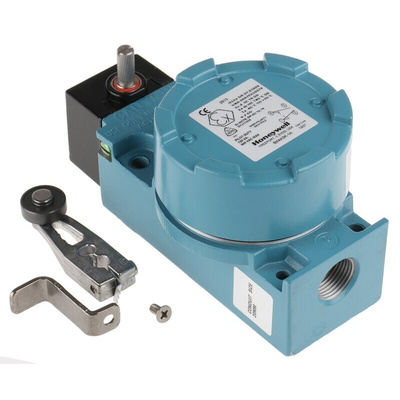

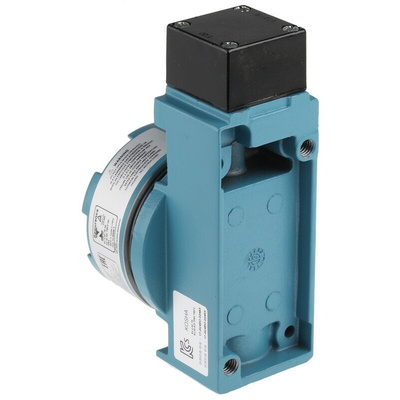

BX4A3K-1A, Honeywell BX Series Roller Lever Limit Switch, NO/NC, IP67, SPDT, Aluminium Housing, 600V ac Max, 10A Max

BX Series

Explosion proof limit switches designed specifically for use in hazardous location applications. The enclosure is sealed for protection against water, corrosion, dust and oil.

Ideal for outdoor use and adverse environments
Removable circular cover for access to switching elements and wiring
Rated at 10A continuous
Protected to IP67

Group and Category

II 2 GD EEx d IIC T6

Certificate No.

SIRA 00 ATEX 1037

Approvals

UL, CSA, NEPSI

Honeywell Snap Action Rotary Lever Limit Switch, NO/NC, 600 V - BX Series - BX4A3K-1A

This aluminium limit switch from Honeywell is an ideal choice when you need to operate a circuit using mechanical force. It features a rotary lever actuator and two silver contacts, which provide excellent electrical conductivity and resistance to oxidation. This ensures reliable performance over a long lifespan. The contacts are also designed for snap-on connection, which lets you install the switch in your equipment securely with minimal maintenance or tooling required.

Features and Benefits

• Housing made from hardwearing aluminium is lightweight, strong and long-lasting
• IP (ingress protection) 67 rating indicates the switch is fully dustproof and can be submerged safely in 1 m of water for up to half an hour
• Wide operating temperature range of -40°C to +70°C for use in a variety of demanding industrial environments

Applications

• Industrial manufacturing
• Packaging and processing plants
• Transportation

What safety certifications does this product have?

The switch comes with an ATEX (devices intended for use in explosive atmospheres) certificate, which means that your circuitry will be protected even in the most extreme industrial conditions.

Approvals

II 2 G EEx d IIC T6

SIRA 00ATEX1037

CSA LR57327

UL E61730
