BI10U-Q14-AP6X2, Turck Inductive Block-Style Proximity Sensor, 10 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

Rectangular

Features and benefits

PBT housing and sensing face.
Side sensing-reduces housing depth.
2m PVC prewired and M8/M12 connector versions
Connector versions supplied with a 2m PUR single-ended, straight connector lead
3 wire DC
Yellow LED output status display
Green LED for power on, flashing indicates a short circuit

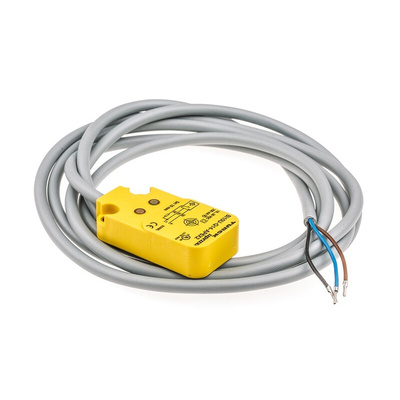

Turck Proximity Sensor, Rectangular PBT Housing, 2m Cable Length - Uprox Series - BI10U-Q14-AP6X2

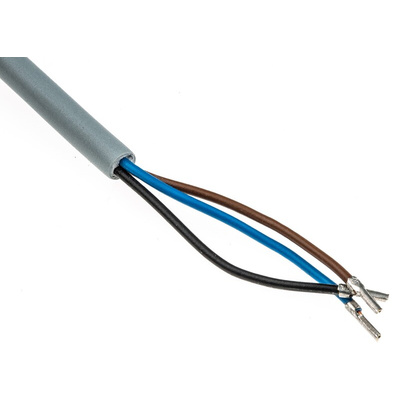

Looking for an alarm that's triggered by metal objects? Try this Turck inductive proximity sensor. It generates a magnetic field to reliably determine the position of components made from aluminium, brass, iron or copper, in a non-contact 10mm detection range. You can put it to the test on mobile equipment, thanks to its resistance to shock and vibration. The product's tough PBT housing withstands corrosion, so it's suitable for use in humid locations. As this proximity sensor comes with a 2m cable, you have reach as well as a reliable reaction.

Features & Benefits

• Extended operating temperature range between -30°C and +85°C makes it compatible with demanding locations
• IP67-rated housing that's dust-tight and protected against immersion in 1m of water for up to 30 minutes
• LED indicators offer quick visual status identification
• MTTF of 874 years when operating in temperatures of +40°C for longevity

Applications

• Robotics and automation
• Industrial process control
• Transportation industry
• Security systems

Is this proximity sensor protected against reverse polarity?

Yes, the product is protected against reverse polarity to minimise the chance of an incorrect connection that could cause it to malfunction.

Uprox Range

Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 rating (Barrel is IP68)
High switching frequency
No load current 15mA max.
Operating Temperature Range -25 → +85°C
Short circuit protection Overload protection
Reverse polarity protection
Inherent weld field immunity
