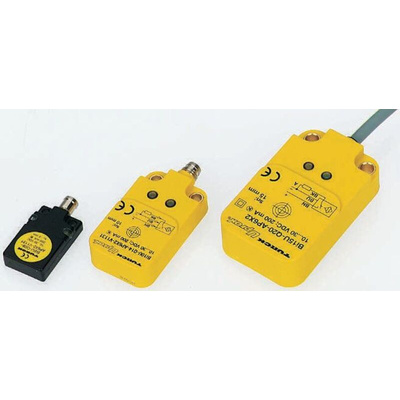

BI10U-Q14-AP6X2-V1131, Turck Inductive Block-Style Proximity Sensor, M8 x 1, 10 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

Turck Proximity Sensor, 250Hz Maximum Switching Frequency, PBT Housing Material - Uprox Series - BI10U-Q14-AP6X2-V1131

Keep automated production on track by making space in your setup for this Turck proximity sensor. It uses a magnetic field to spot when a metal object is present or absent. As it does this without any physical contact, it's a practical choice for systems with delicate parts. For safety, this unit is protected against short circuits. A tough PBT housing means it's resistant to impact and corrosion, so you can rely on it in harsh working conditions. This sensor is suitable for use in demanding settings, thanks to its broad operating temperature range between -30°C and +85°C.

Features & Benefits

• Can be mounted with the active face positioned upwards or downwards for versatility
• IP67 rating indicates it's dust-tight and protected against immersion in 1m of water for up to 30 minutes
• Insulated for protection against electric shocks

Applications

• Food and beverage industries
• Agricultural machinery
• Transportation
• Breweries

Does this proximity sensor have status indicators?

Yes, the component includes two LEDs that let you know when it's on and when its output is energised. When its green LED flashes, you know there's a risk of a short circuit.

Uprox Range

Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 rating (Barrel is IP68)
High switching frequency
No load current 15mA max.
Operating Temperature Range -25 → +85°C
Short circuit protection Overload protection
Reverse polarity protection
Inherent weld field immunity

Inductive Sensors Uprox - Data Sheet

Inductive Sensor uprox® Bi10U-Q14-AP6X2-V1131
