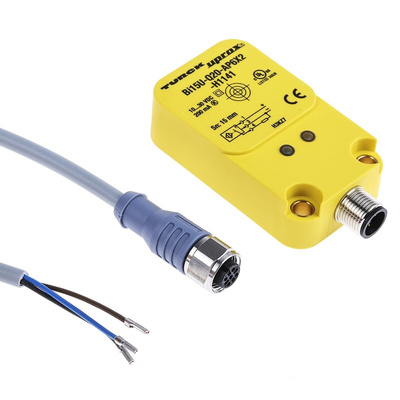

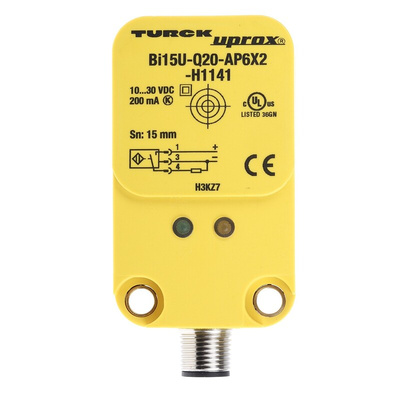

Bi15U-Q20-AP6X2-H1141, Turck Bi15U Series Inductive Block-Style Proximity Sensor, M12 x 1, 15 mm Detection, PNP Output, 10 → 30 V dc,, Индуктивный датчик приближения

Turck Proximity Sensor, 2m Cable Length, Chrome-Plated Brass Connector Material - Uprox Series - Bi15U-Q20-AP6X2-H1141

For quick and accurate object identification in your industrial equipment, choose this proximity sensor from Turck. It works by transmitting a signal to your control device when a metal interrupts its magnetic field. Thanks to its detection range of 15mm, this unit is a sure fit for short-span operations like can rejection and date coding. It has a time delay before availability of 8ms after picking up an issue, so it keeps your processes up to speed in high-tempo jobs.

• Integrated reverse polarity protection for enhanced electrical safety
• Wide operating temperature range between -25°C and +70°C for use in demanding conditions
• Three LED indicators for easy monitoring and troubleshooting
• Low ripple rate of ≤10% for noiseless transmission
• Chrome-plated brass connector is resistant to corrosion and wear

Applications

• Assembly lines
• Process and packaging industry
• Warehousing facilities

How do I connect this sensor to my equipment?

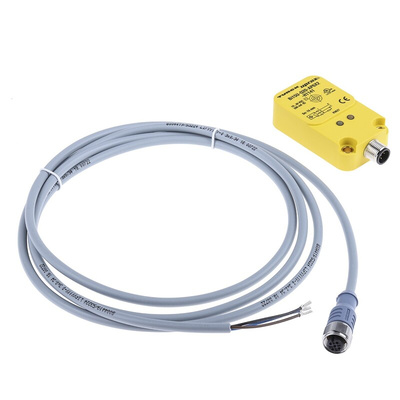

This unit comes with a long 2m cable for easy access to your control unit or energy chain. The wire is unterminated on one end, so you can adapt it to the needs of your system.

Uprox Range

Extended sensing ranges
Sense all metals at the same distance - with no reduction factor
IP67 rating (Barrel is IP68)
High switching frequency
No load current 15mA max.
Operating Temperature Range -25 → +85°C
Short circuit protection Overload protection
Reverse polarity protection
Inherent weld field immunity
