0 506 09, Legrand Type E - French 3 Gang Trailing Socket, 250 V ac, No

Legrand Trailing Socket

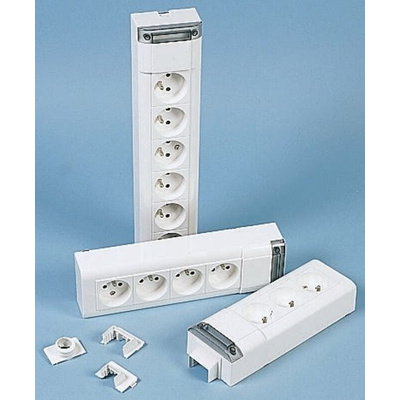

The Legrand power distribution unit with extension leads has a current rating of 10A and 16A and voltage rating of 250VAC. This power unit has 3 type E French sockets. The board has sockets that can be disassembled for fixed or mobile use. This unit looks the same as box mounted sockets and can be installed in record time. Each box has an integral marker holder. This unit is supplied with three special ends to connect with 20 32 x 12.5, 32 x 16 and 32 x 20 DLPlus mouldings or with a 16mm or 20mm tube.

Features and Benefits

Flush-mounted using screws or a small retractable hook
All sockets are fitted with protective clips
Connection through a 3 x 1.5mm² flexible cable
No RCD protected
Wall mount
No fused
No wired
White

Certifications

NF C 15-100
NF C 61-303 (with min. 2.5 mm² rigid cable)
