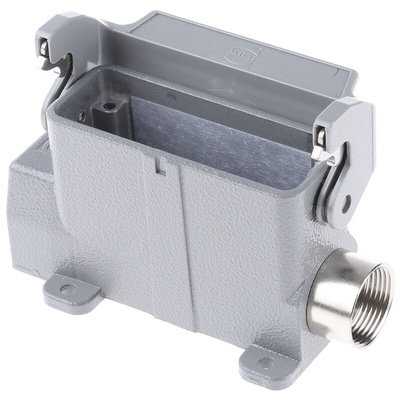

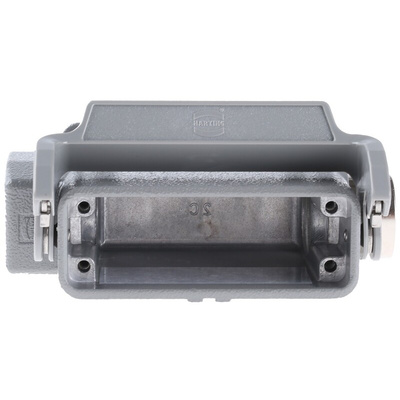

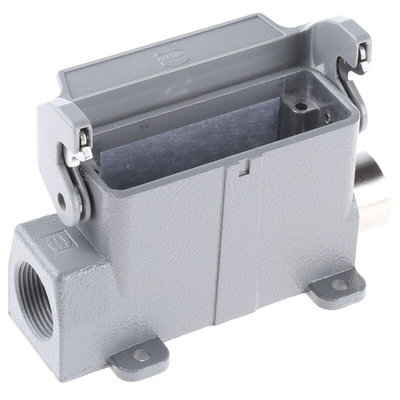

09200160291, HARTING Han A, 16A Straight Heavy Duty Power Connector Housing, Surface Mount

Hoods and Housings

Metal bodied
Single locking lever on the bulkhead and surface mounting housings (the bulkhead housing is also available with a protective thermoplastic cover)

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Range 3 - (Harting Size 16A)

These hoods and housings are compatible with appropriate inserts from the Han A®,and D series. The 'compatibility' table details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.

Han A Base Surface HC 1 Lever 2 Entries Drawing

Datasheet

Dimensional Drawing
